 General:
1976 Cheoy Lee Clipper 48
Ketch Rigged
Builder’s hull number 3033
USA Hull number 588246

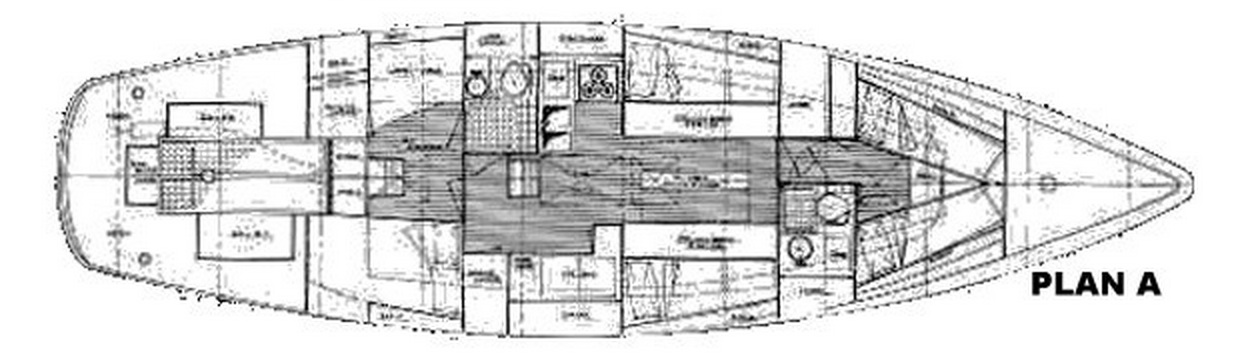

Plan A layout

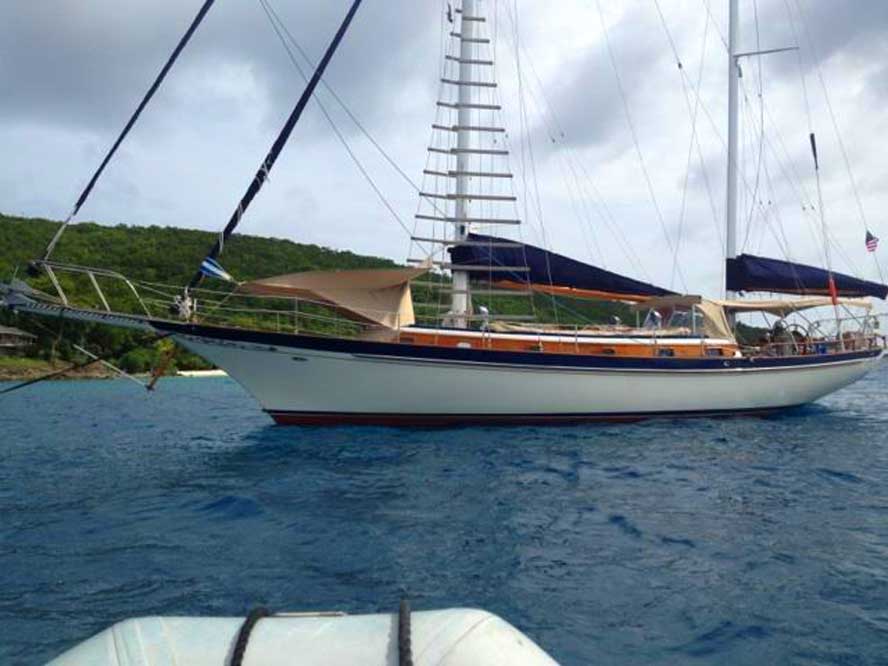

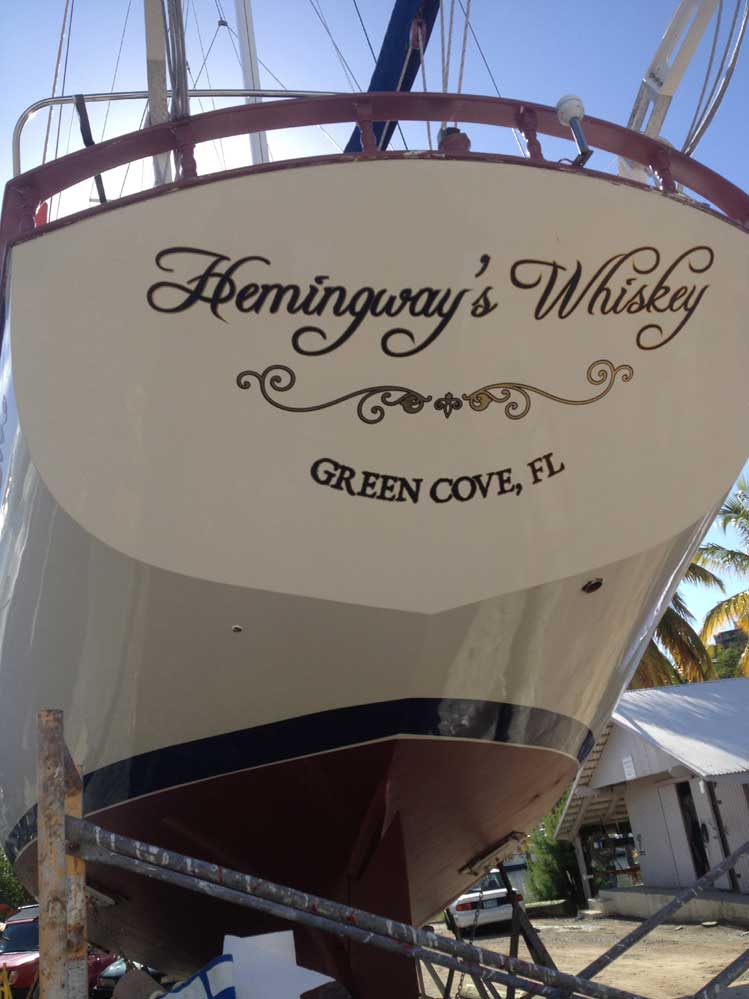

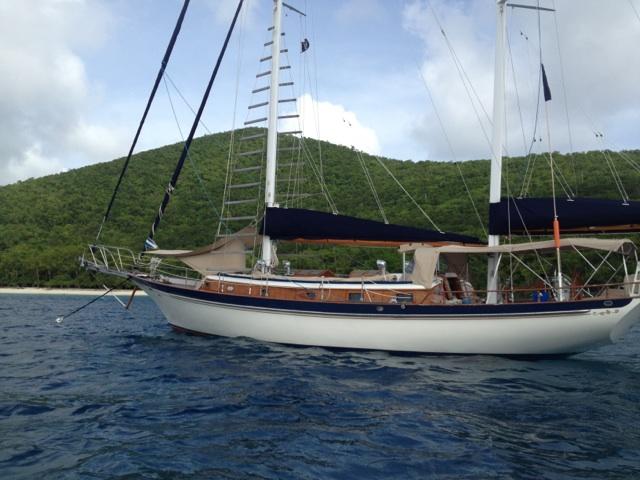

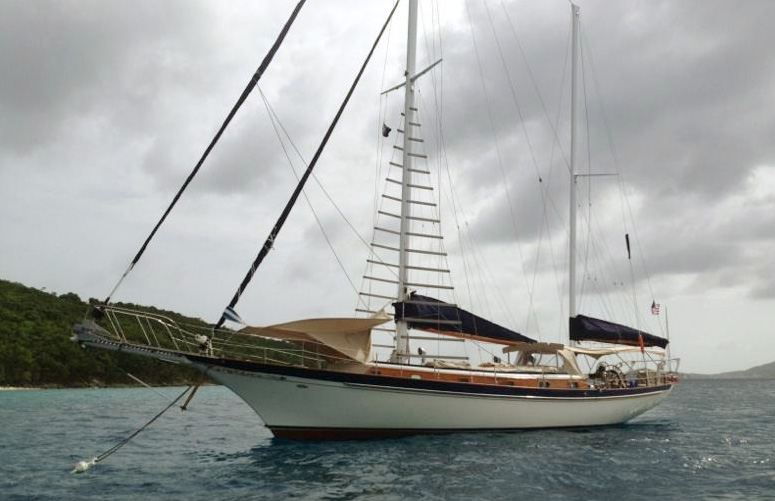

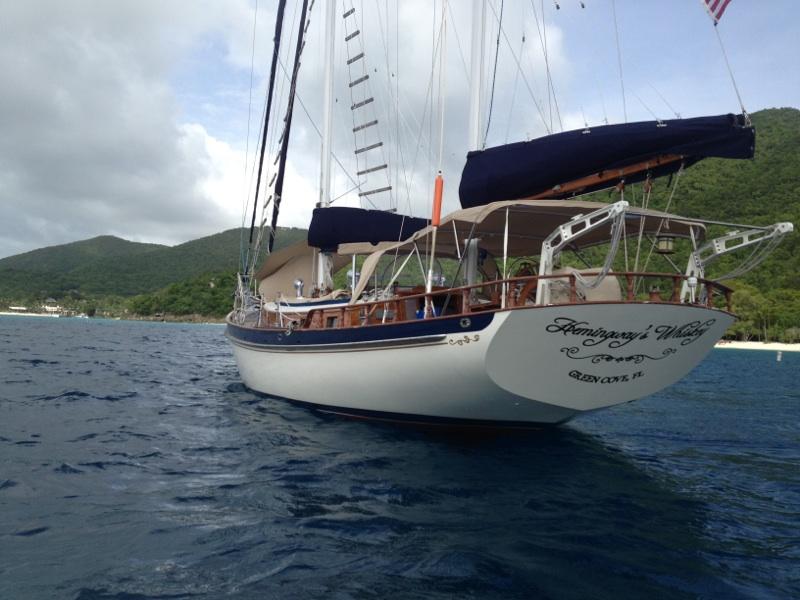

S/V Hemingway’s Whiskey is an
excellent example of the elegant Clipper 48 designed by A.E. Luders
and built by the acclaimed Cheoy Lee shipyard. The beautiful
sweeping lines, clipper bow and varnished deck house present a
nostalgic and graceful form. With all the beautiful teak and holly
treatments you would expect down below.
She has
been cruised and lived aboard extensively throughout North America
and the Caribbean. In 2010 the boat was completely re-rigged with
new spars, new standing rigging, new turnbuckles, new chain plates
and new bow pulpit and dolphin striker. New sails were added in 2010
with a new asymmetrical added in 2013 as well. New canvas for sails,
dodger, bimini, cabin sun awning added in 2012.
The yacht

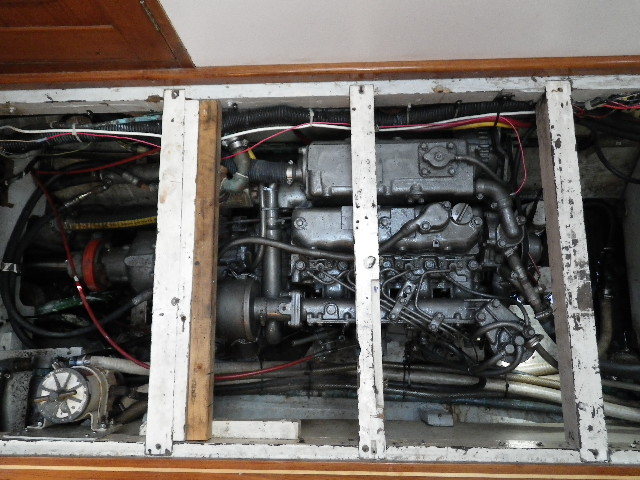

was refit in 2003 which included a new Yanmar 85 hp diesel engine,
fuel tanks, electrical upgrading, new headliner and rebuilt

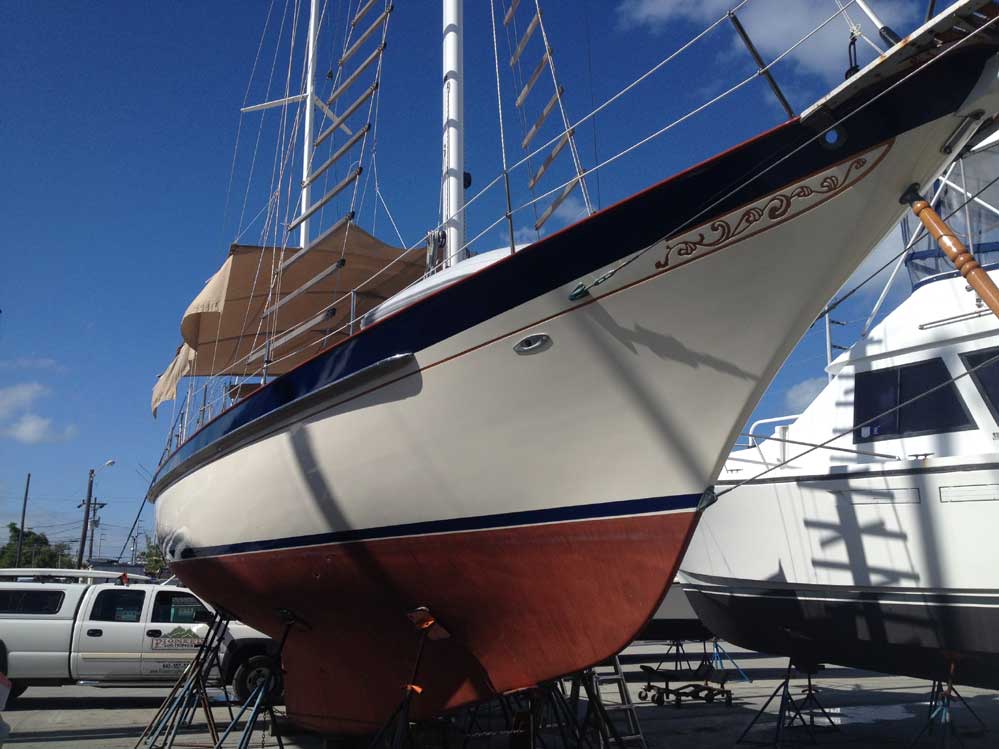

butterfly hatches. New Awl Grip hull paint 2012. New teak decking
was expertly installed in 2002 . Including a 2012, 12 foot Carib RIB
with 15hp Yamaha outboard for tender. Down below the boat offers a
spacious two stateroom, two head layout with complete galley and
varnished teak joinery. Hemingway's Whiskey is a rare offering which
has been very well maintained and refitted.
Layout:

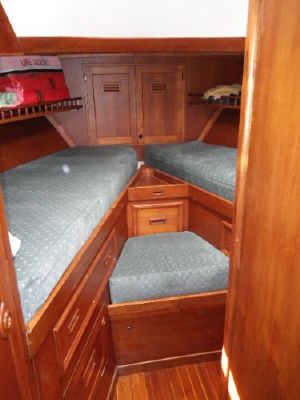

Forward
cabin shows shelves along each hull, vee berth with seat, lockers
and drawers below the berth, opening overhead hatch, escape ladder

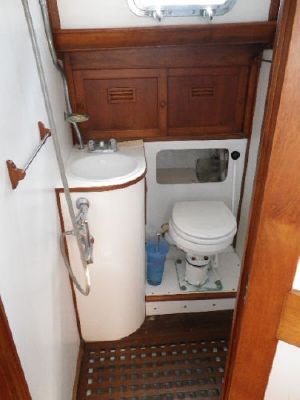

with fixed and opening port lights. The forward head is next with
Wilcox-Crittenden manual marine toilet, hand shower, porcelain sink
with pressure faucet and opening port light. The port side passage
way to main cabin shows two hanging lockers
along hull side. Head and hanging lockers are designed for privacy.

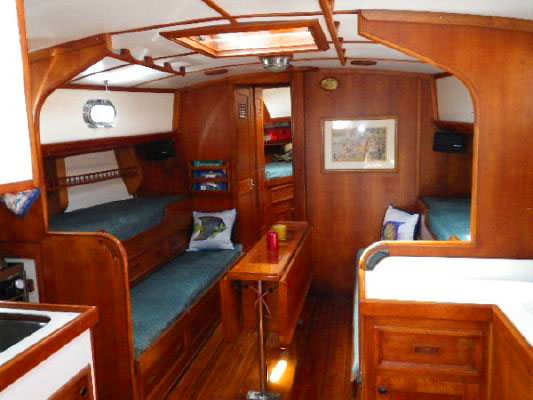

The main cabin has mirror imaged sette/berth (pup out) and pilot
berths to port and starboard. The full width galley is next aft with
stove and sink to port and the work counter over the insulated
refrigerator locker to starboard. Main cabin shows tow butterfly
hatches, four opening cabin side portlights and one fixed cabin side
portlight.

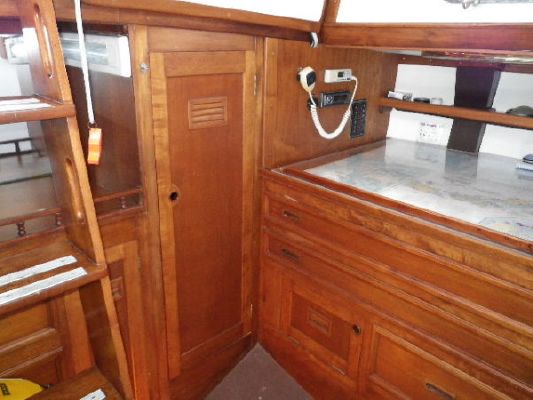

The aft cabin shows double
berth at starboard quarter with navigation table and wet locker
across hull to port. The aft cabin shows two opening cabin side
portlights and a five step companionway ladder to cockpit centered.

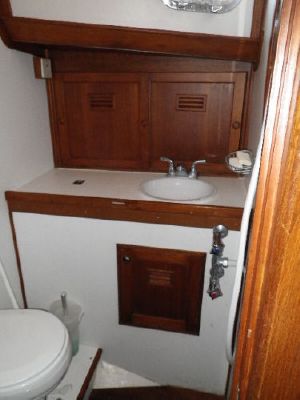

The aft head is located between the galley and the aft cabin to port
and shows opening cabin side portlight, manual marine toilet,
porcelain sink with pressure faucet and hand shower.
The interior shows varnished teak and holly, varnished hardwood trim
on hardwood cabinetry and bulkheads, white panel ceiling. Structure
is strong and no evidence of weakness or movement.

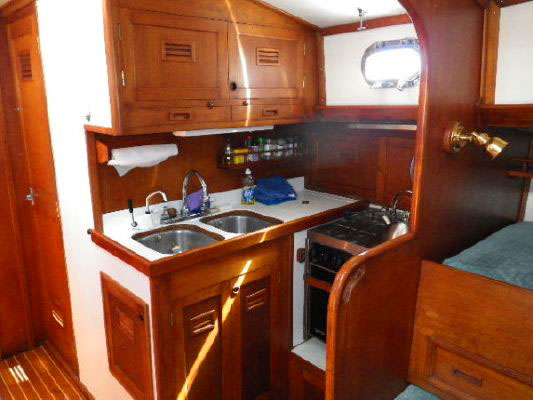

Galley:
Stove
Force 10 three burner with oven gimbled LPG
Double basin stainless steel sink with pressure water
Refrigeration in 12V DC air cooled comperessor

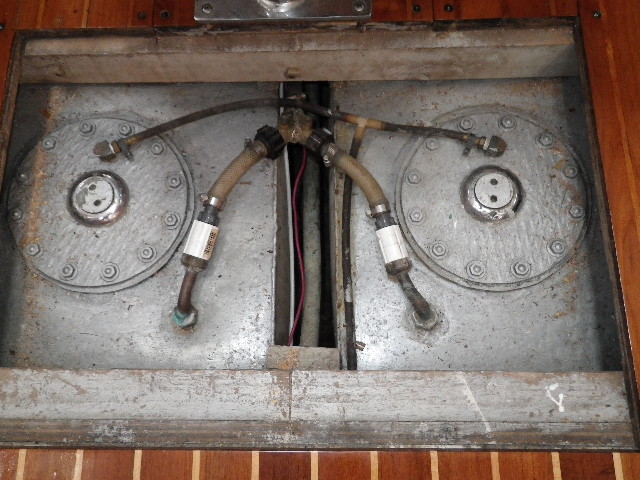

Tankage
Diesel 80
gallons new 2003
Fresh water 200 gallons new 2003
Gray water 8 gallons
Ground tackle
50# Dansforth, 6’ 5/16” chain with 150’ 1” rode
45#CQR 200’ 3/8” chain
Plumbing
Fresh
water 12V DC Shurflo
Water heater 110V 6 gallon Seaward
Marine toilet (2) Wilcox-Crittenden
Through hull bronze
(3) 12V DC bilge pumps
Manual bilge pump

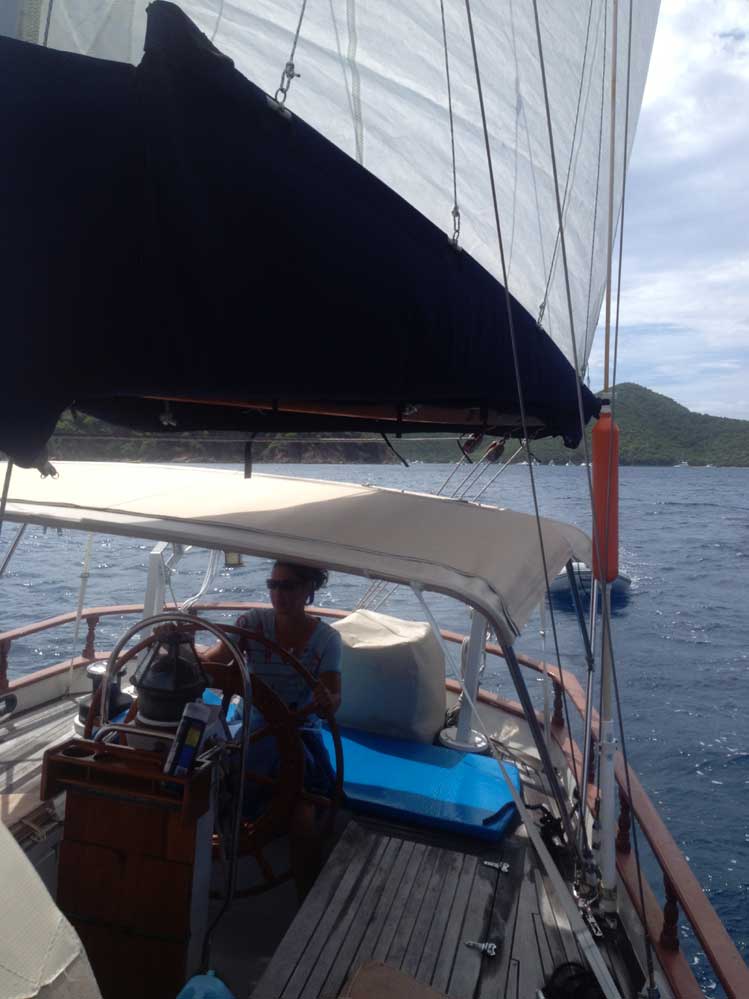

Steering

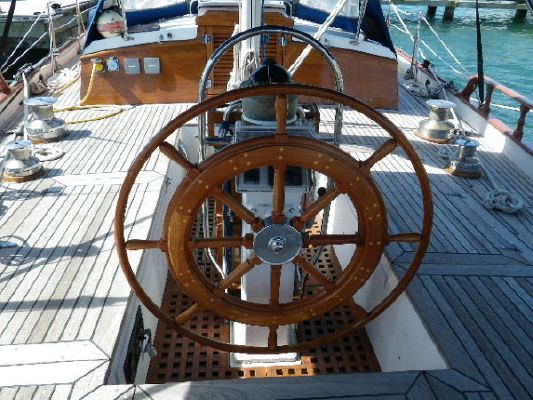

Wooden
spoked wheel at the Edison Helm
Simrad AP11 auto pilot
Electrical
12V DC
Power
Alternator, 2012 high out put Balmar 110 amp new 2012
(2) four way Smart Switches
House battery 2012 (2) x 8D new 2012
Engine start battery 2012 6V x 2 new 2012
Main panel Cheoy Lee
12V charger Xantrex Freedom Marine 25 new 2009
110/120V AC power
Shore cord
Inverter Xantrex Freedom Marine 25 new 2009
Main Panel Blue Sea

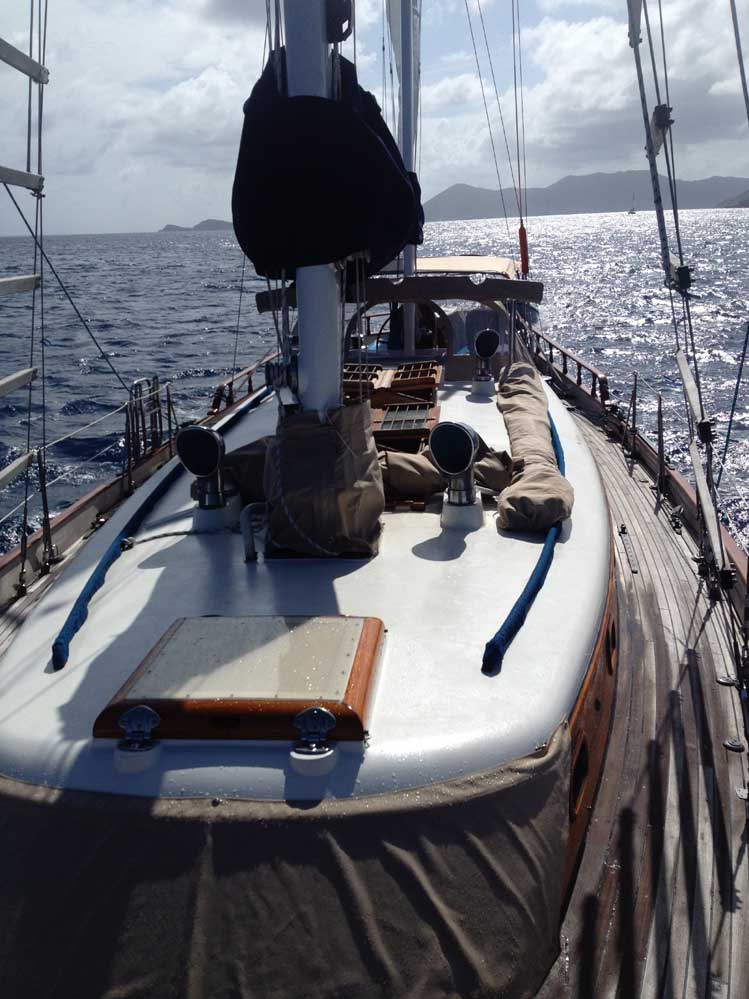

Deck
Gear
Electric
windlass
Stainless steel bow rail
Vinyl covered lifelines
Double anchor platform fitted on top of bowsprit
Cabin top two butter fly hatches
Dorade ventilators

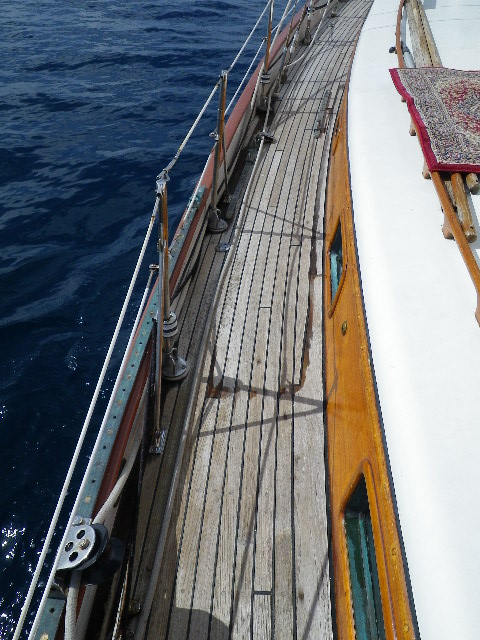

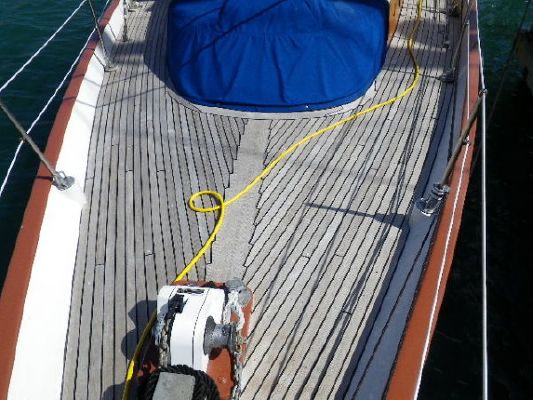

Teak deck new 2002
Spars and
rigging:

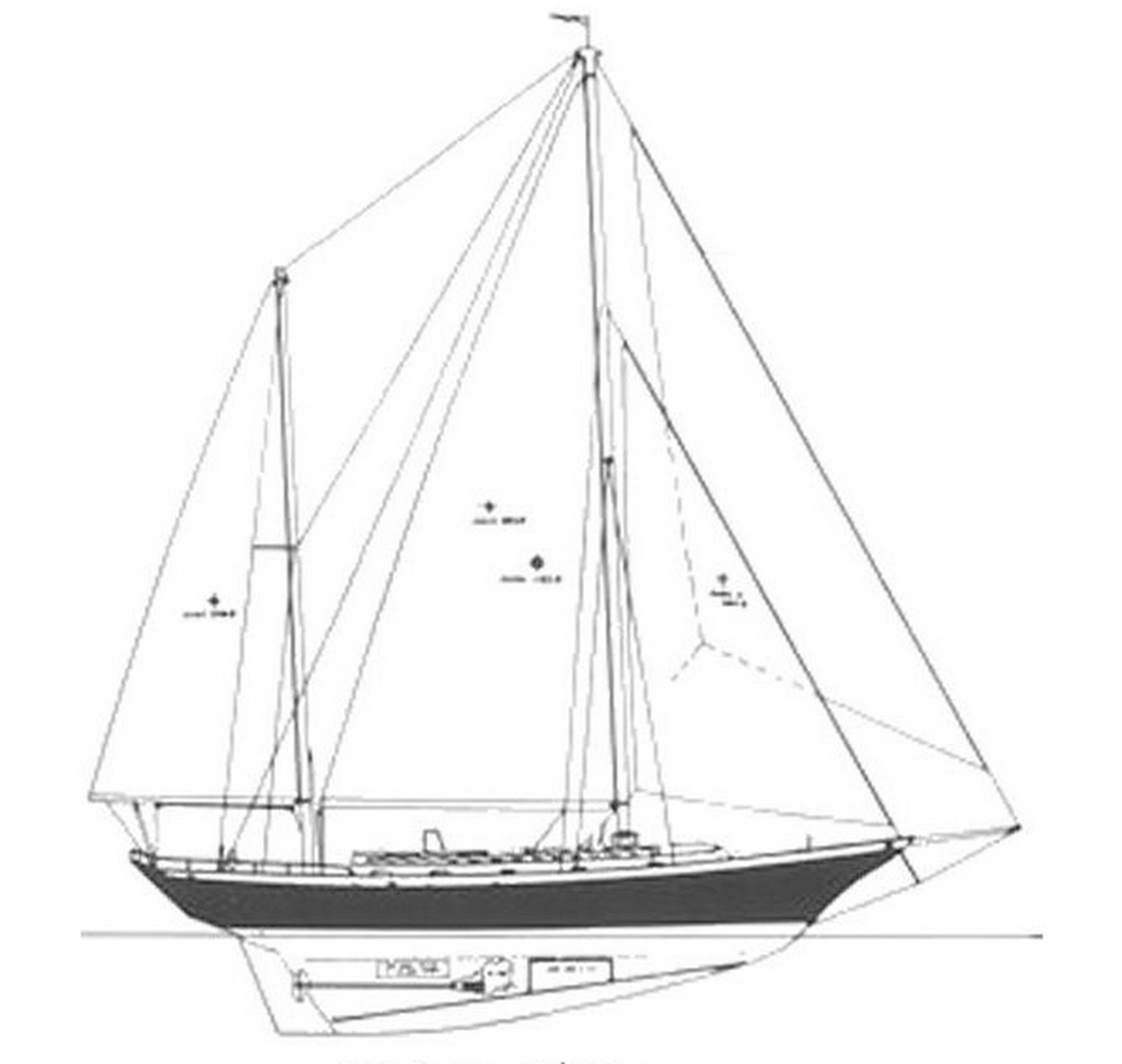

Ketch
rigged
White aluminum spars new 2010
Varnished spruce main and mizzen booms
SS Chain plates new 2010
Winches:
Cheoy Lee 31 2
Cheoy Lee 21 2
Harken 40 1
Cheoy Lee 27 2
Cheoy Lee 23 2
Harken 20 1
Harken 40 1

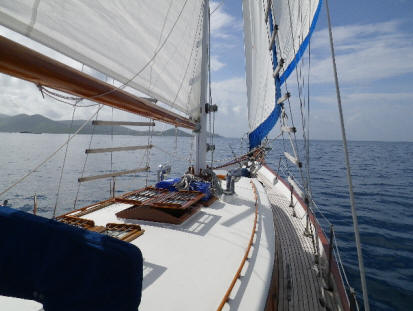

Sail
inventory:
Main sail
Omar new 2010
Mizzen new 2010
Yankee jib new 2010
Stay sail new 2010
Asymmetrical spinnaker new 2012
Canvas:
Cabin top
cover
Broom Crutch cover
Dodger new 2012
Stack pack sail covers new 2012
Cabin sun awning new 2012
Cockpit awning new 2012
Helm cover
Electronics:
VHF Radio
Kennwood TKM-307
Depth Meter Raymarine ST60 new 2009
Knot log Raymarine ST60 new 2009
Ships
gear:
12’
inflatable rib Carib new 2012
15hp Yamaha outboard 2 cycle
Price-
$147,900
USD
|
-
