Cheoy Lee Trawler 46

Trawler 46 which replaced the 47

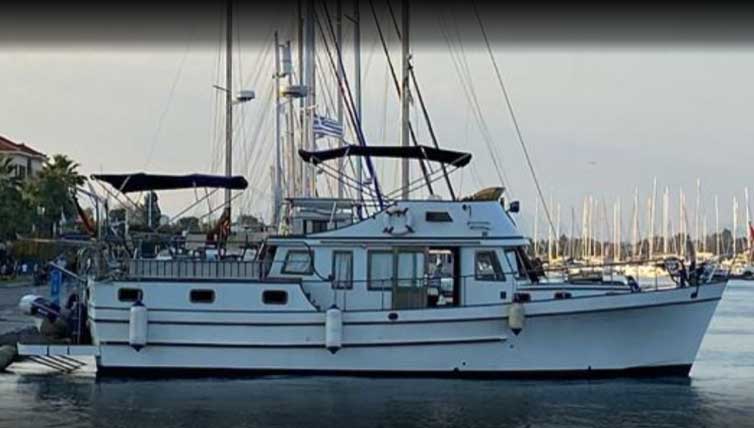

Pictures from original brochure, submitted by Nemo Harding aboard "Honu Kai" a 1979 Trawler


Wheelhouse



Following text from Brochure

This new model supercedes our well-bred Trawler-47 and provides much more spacious accommodation and a separate wheel-house at main deck level, all within similar overall dimensions.
There is splendid 180 degree vision from the helmsman's position in the wheelhouse, sideways vision being enhanced by the use of curved corner windows to reduce blind spots caused by pillars.  Duplicated steering, engine controls and instrumentation are, of course, provided on the flying bridge.
A settee, with lockers below, is built-in on the fore deck ahead of the wheel-house.  Abaft the deckhouse is a covered aft deck lounge space.
The below deck accommodation comprises a two-berth forward cabin and a large full-width guest state room with queen's sized double bed together with a common shower/toilet room.  The full head-room engine room divides the forward accommodation from the Owner's stateroom aft, which also has a queen's sized double bed and an attached private shower/toilet room.
There is an abundance of teak and teak faced furniture, cabinetry, paneling and teak parquet flooring.  Outside, the main and flying bridge decks are fully teak sheathed.
The hull is a solid, hand laid-up G.R.P. molding, sandwich construction being used for the decks and superstructure.  All scantlings in excess of Lloyds' requirements.



Specs

LOA - 45'11"
LWL - 42'
Beam - 14'8"
Draft - 4'8" Max
Displacement -  49,200 Lbs
Ballast - 14,000 Lbs
Fuel Cap - 820 U.S.G.
Power - 2x120 HP Ford Diesels
Cruising Range
1350 miles at 9 Knots
1500 miles at 8.8 Knots

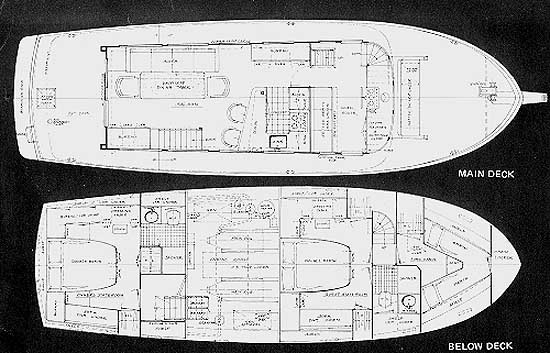

Click for Line Drawing




Owners Stateroom


More Trawlers


Thanks to Nemo Harding for supplying us with the brochures on the Trawlers

Boat- "Honu Kai" - 1979 Cheoy Lee Trawler 46'
OWNER - Nemo & Erin Harding
