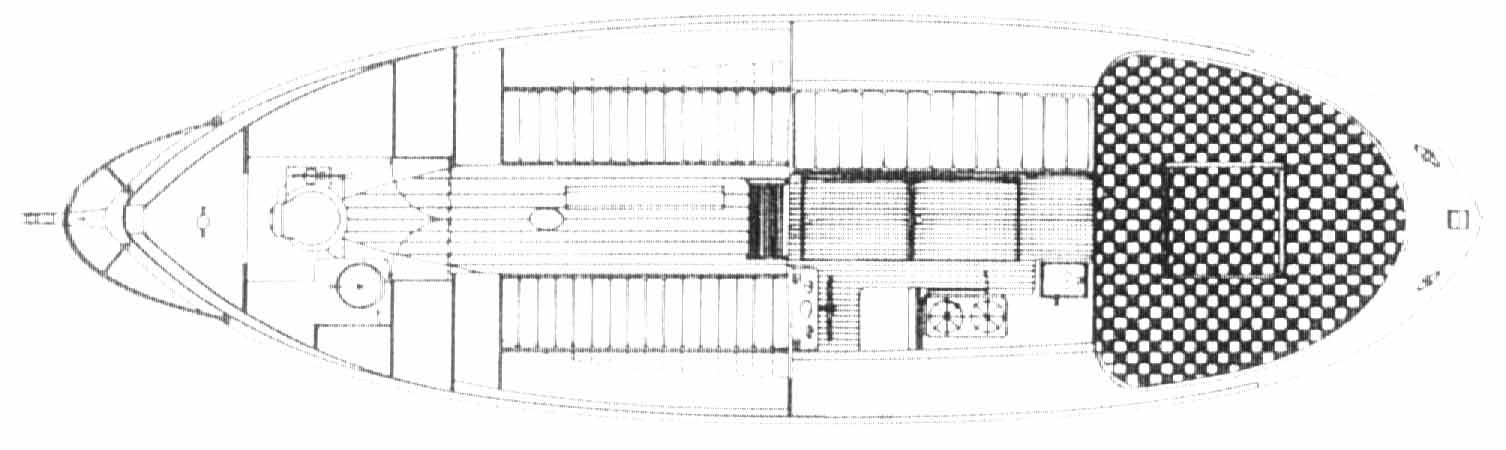

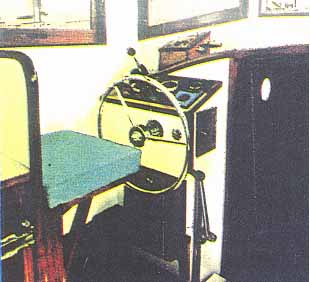

| Pictures
from original brochure |
|
Here is text from
brochure
Rugged ancestors of the Monterey Clipper can be found along the coast
from Mexico to Alaska, conquering the roughest waters for professional fishermen and
yachtsmen alike. The seaworthiness of this salty old character boat has been legendary for
more than a century on the Pacific Coast.
Cheoy Lee's
Monterey Clipper comes both as a cruiser and a motorsailer, and is available in a choice
of fiberglass or teak. Her graceful sheer and strong flare forward capture the feeling of
the classic fishing boat; her fine appointments and modern materials bring her very much
up to date.
On the
Monterey Clipper you will live and play in comfort and safety, capable of riding out even
the most violent of storms. She is built to the highest standards of Lloyds of London,
with such luxury features as enclosed toilet, topside galley, convertible dinette, and
berths for five. Among the many available options, the buyer may select either Diesel or
gasoline power. |
|

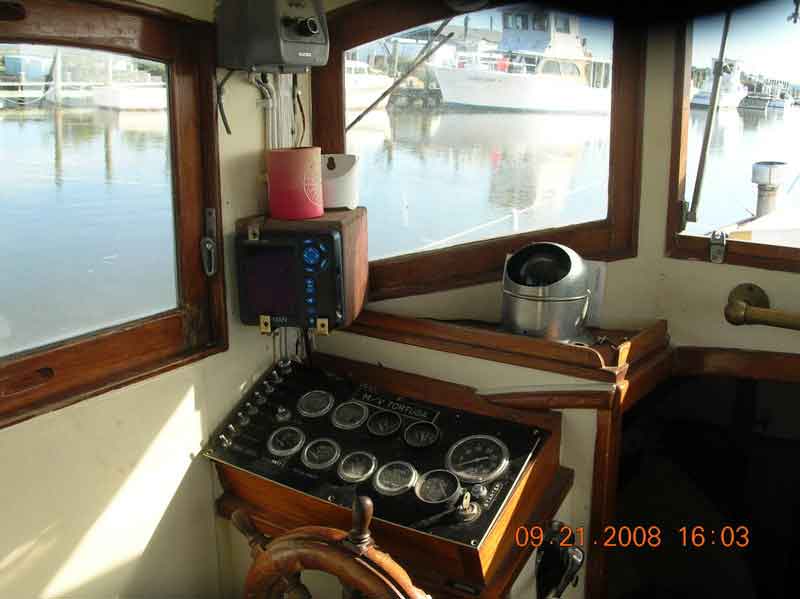

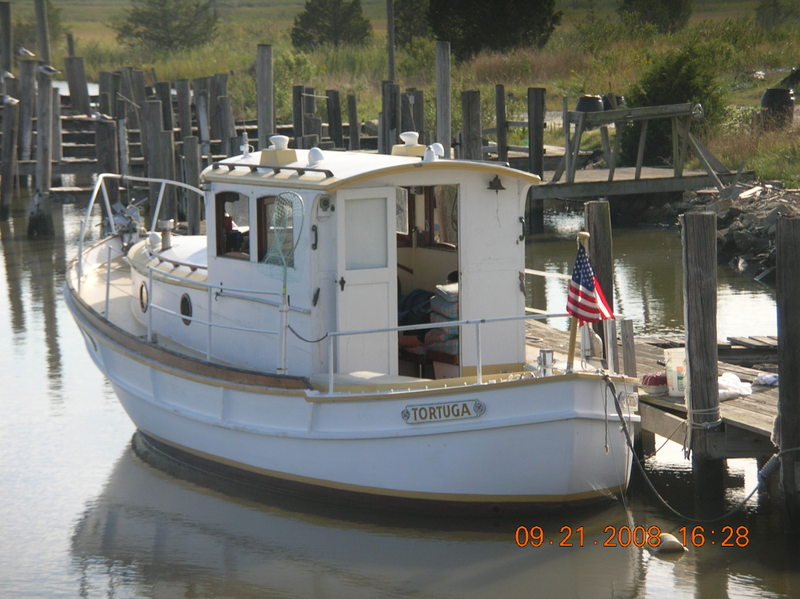

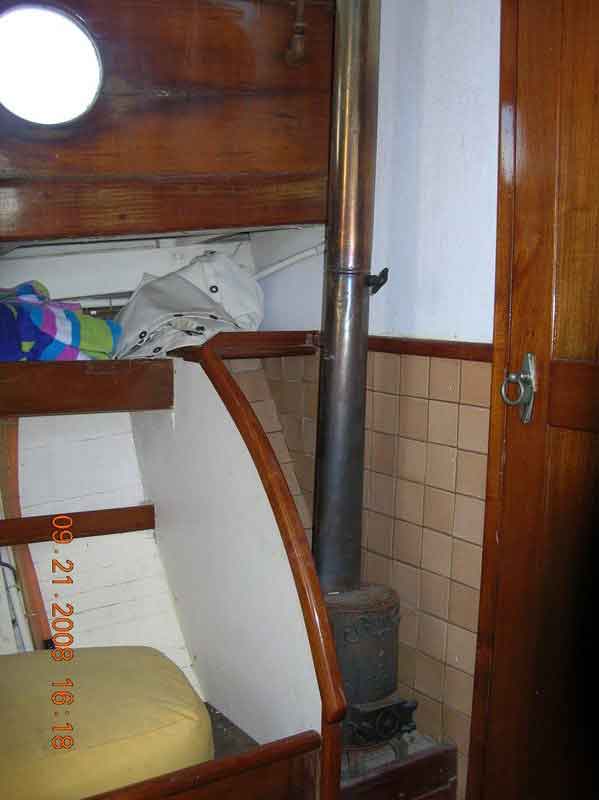

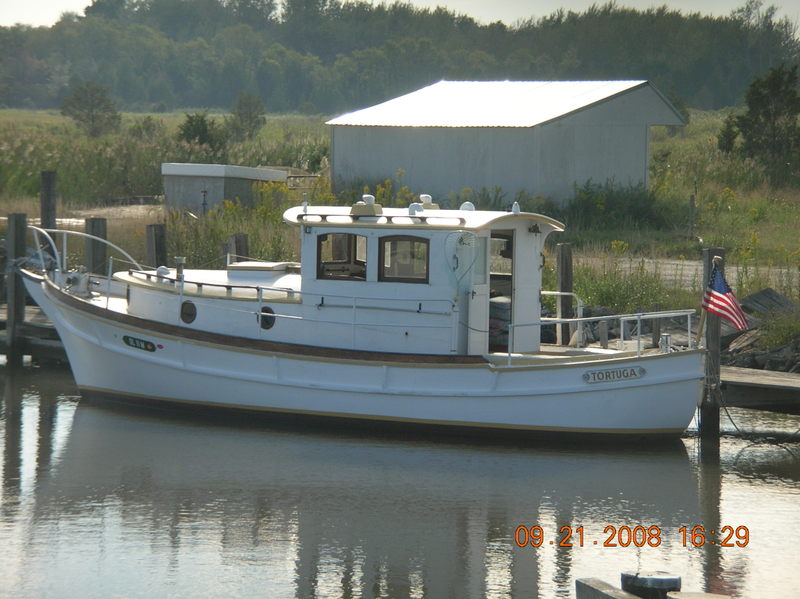

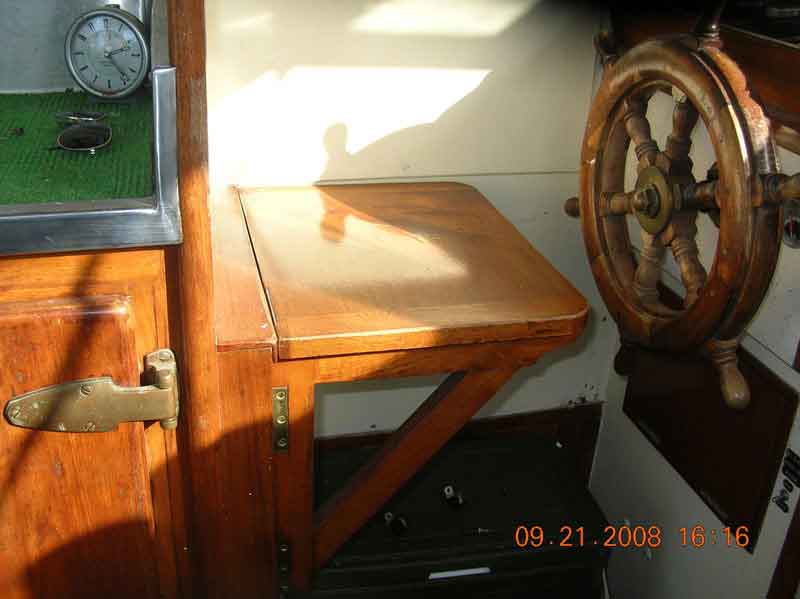

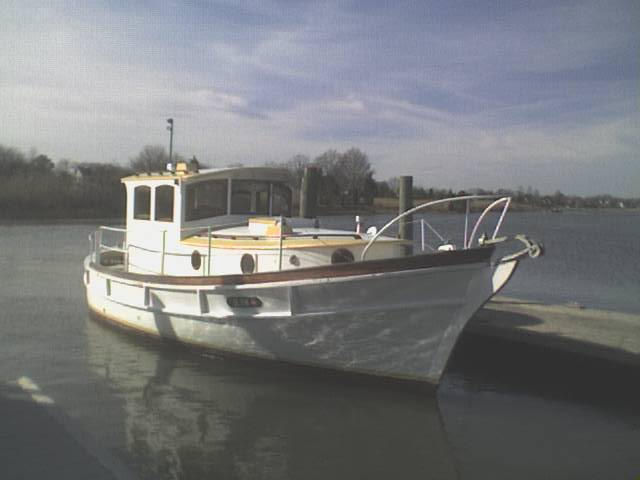

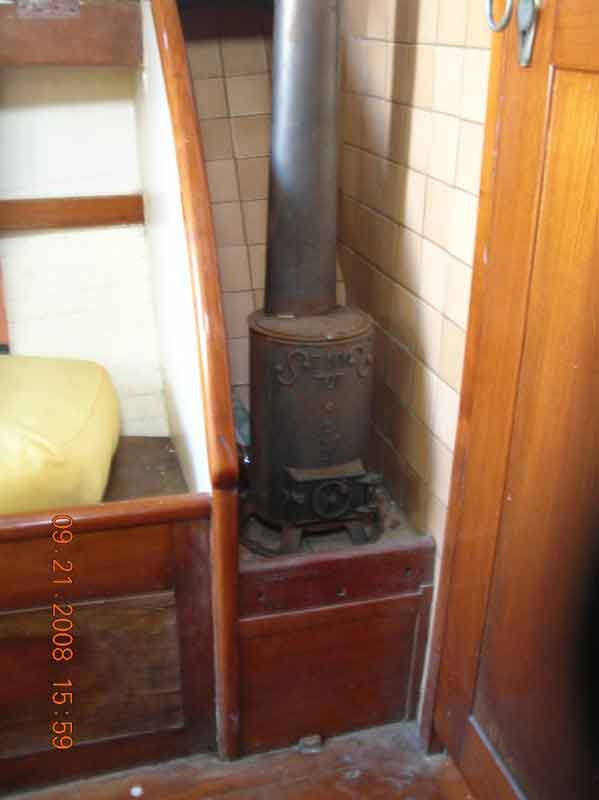

We only have one member of this model and Paul & Brenda have
been kind enough to submit some pics of this model. Click to
enlarge. james...
|
|
|
|
LOA - 31'3"
LWL - 26' 3"
Beam - 9'1"
Draft - 2' 9"
Displacement (cruiser) - 9,400lb
Displacement (Motorsailor) - 11,000lb
Sail area - 257 sq ft
 |
|
STANDARD
EQUIPMENT
Mahogany
strip planking 1 1/8" x 1 3,/4" edge fastened
lpol steambent frames
Yacal stem, sternlost, horn timber, and keel
Fiberglass covered marine plywood deck

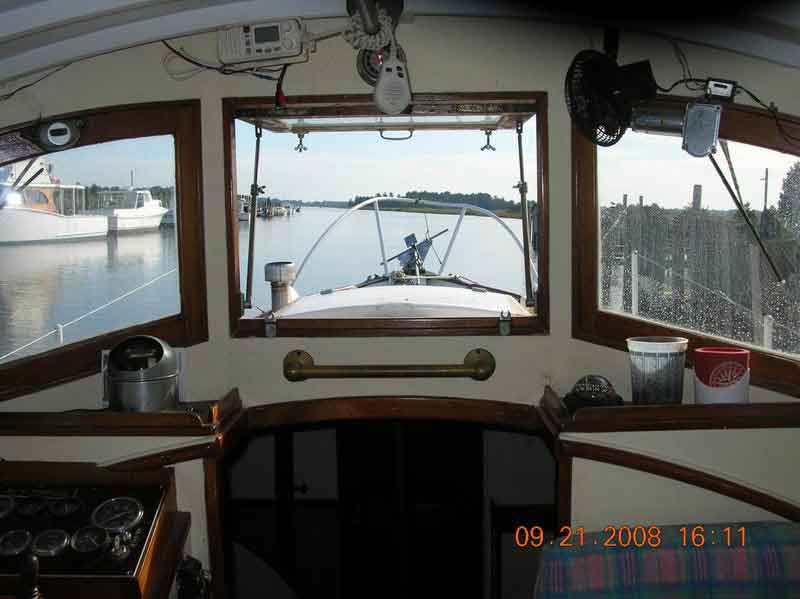

Teak cabin and wheelhouse
Teak trim and cabin sole
Wheel steering with detachable tiller
Self-bailing cockpit with teak gratings
Three-inch bilge pump
Chrome plated bronze deck gear and fittings
Chrome plated bow pulpit, anchor chain roller and clocks
Perkins marine Diesel engine 36 shaft hp,
2 : I reduction gear with fresh water cooling system
Heavy duty marine 12 volt battery, 200 amps
Bronze shaft and propeller
Cutless rubber stern bearing
Two fuel oil tanks, 40 gallons each
Two fresh water tanks, tinned copper, 33 gallons each)

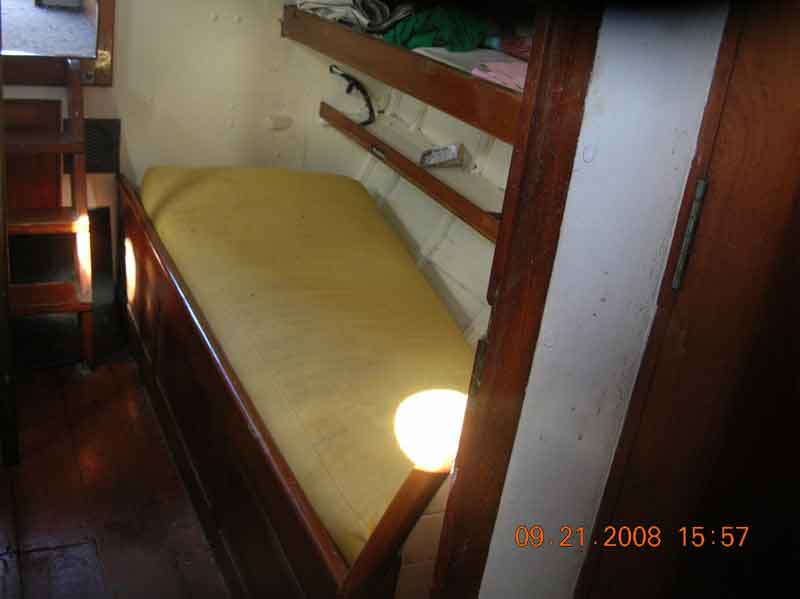

Five berths 4" foam rubber with plastic covering

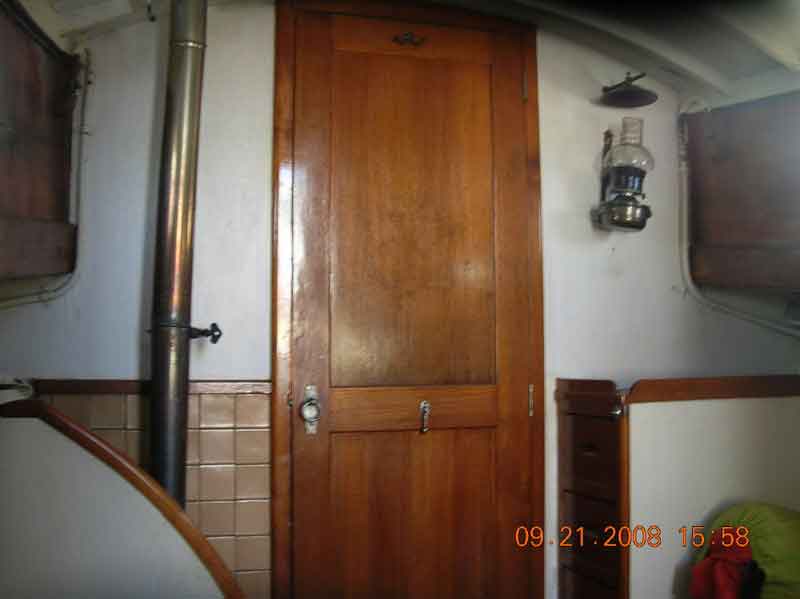

One complete toilet room with wash basin and mirror
Hanging locker and shelves

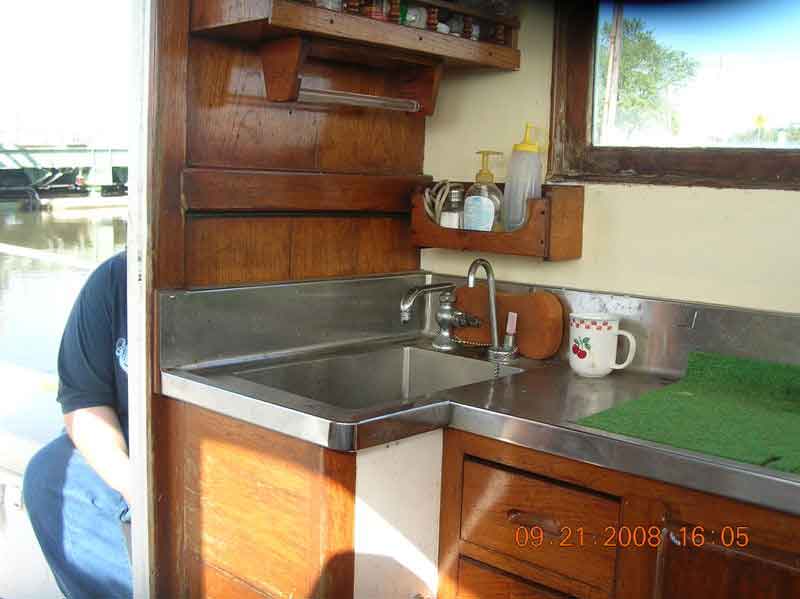

Stainless steel galley sink with pump

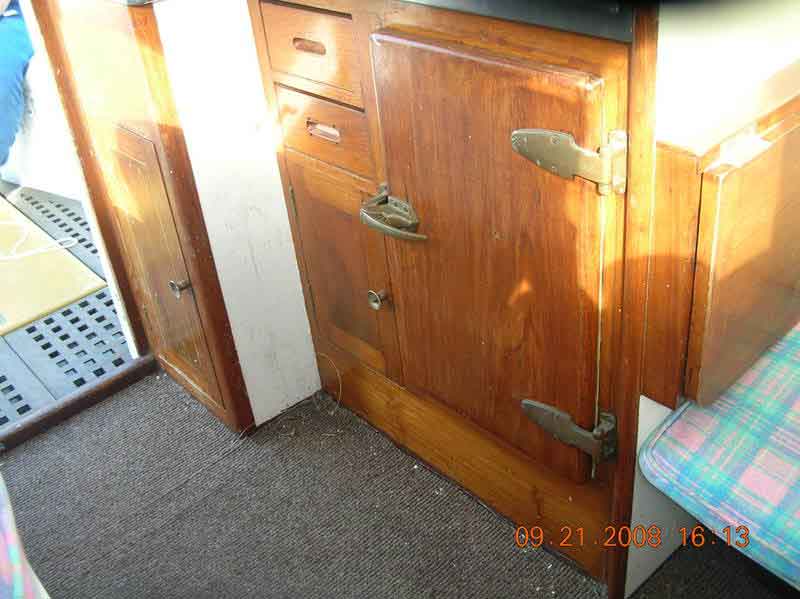

Ice box

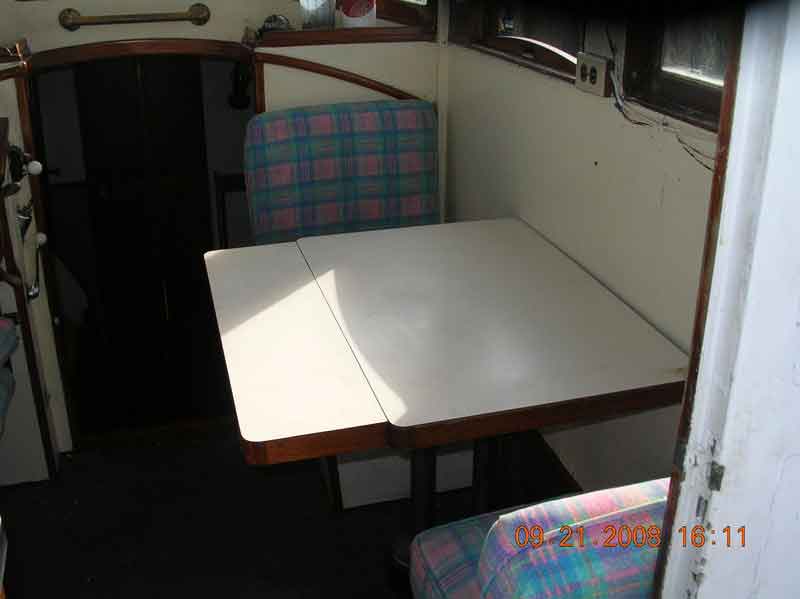

Convertible dinette
Formica table top and galley surface
12 volt lighting system with master switches and fuses
20 bowlight
12 sternlight
Two running lights
Four cabin Lights and sockets
FIBERGLASS MODEL
Specifications for the fiberglass model are similar to the
wooden version except that the hull is made of fiberglass
Cabin sides, decks and interior are usually made of Teak as
standard
OPTIONAL EQUIPMENT
Choice of gasoline or Diesel engine
SPECIFICATIONS AND PRICES SUBJECT TO CHANGE |
|
