Cheoy Lee 41


Sloop/Ketch/ or Yawl

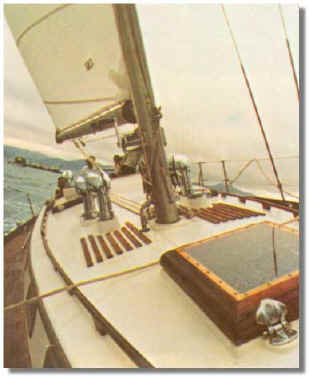

Pictures from original brochure

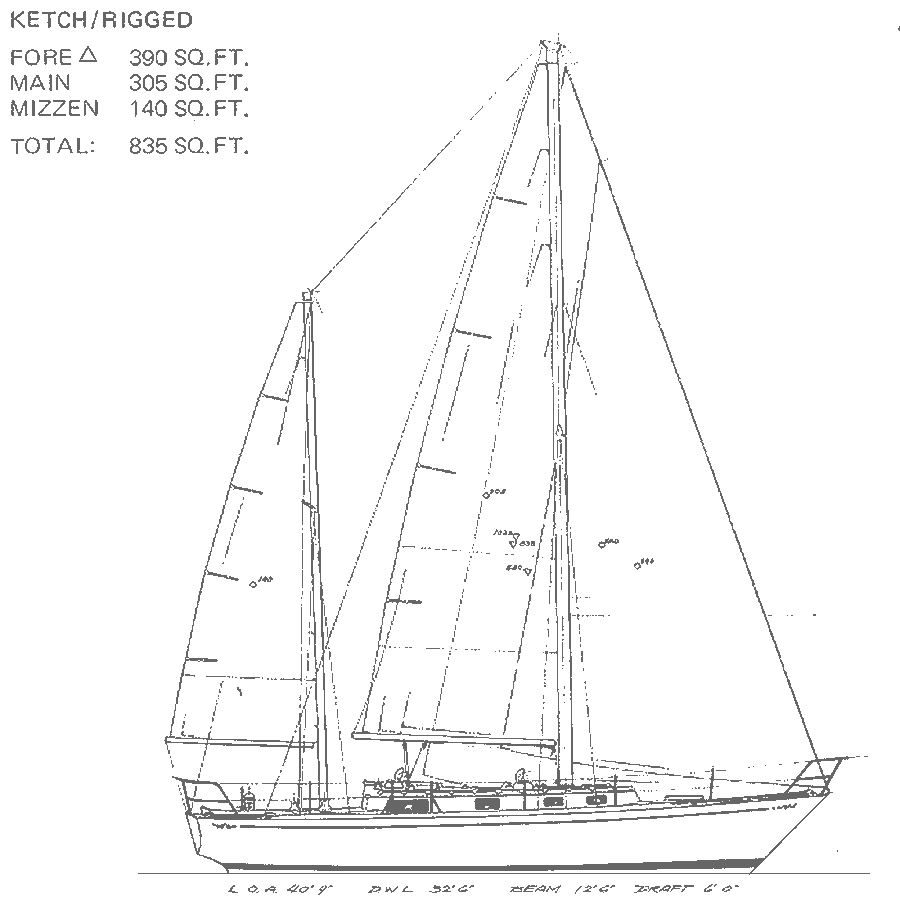

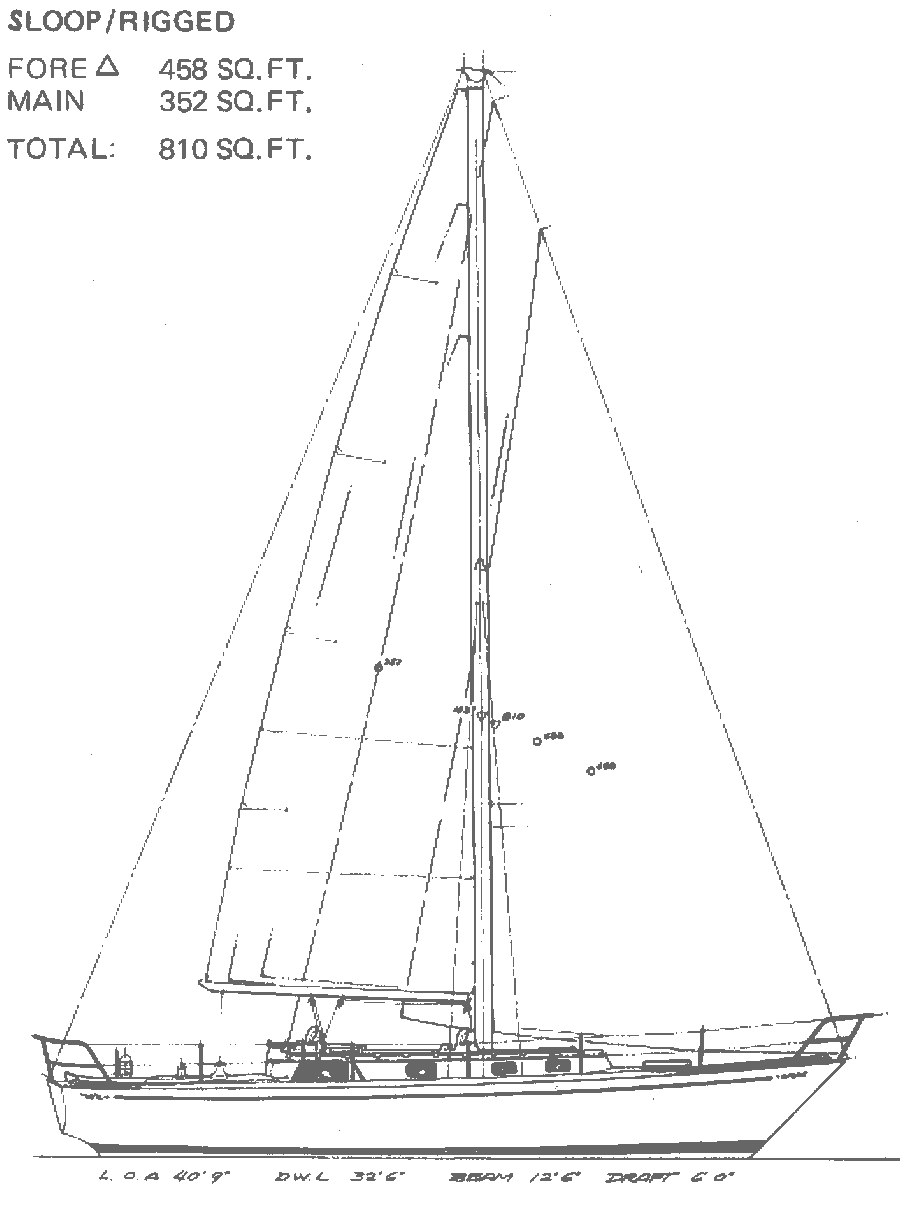

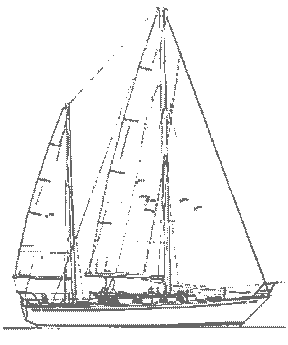

Click above images for sail plans



Specs

LOA....................................... 40'9"
DWL...................................... 32'6"
Beam.................................... 12'6"
Draft....................................... 6'
Sail Area
Sloop .................................... 810 sq ft
Ketch .................................... 835 sq ft
Yawl ...................................... 820 sq ft
Displacement.....................  22,000Lbs
Ballast................................... 8,700Lbs
Fuel ......................................  75US Gal
Water....................................  130US Gal

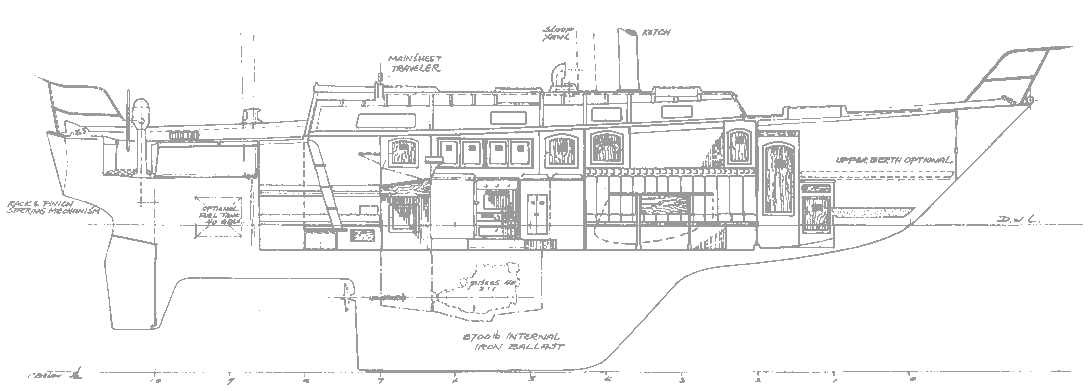

Click for line drawings

James,
Keep up the great work you are doing on the Cheoy Lee Web Site.  Attached you will find a listing of various items that my father has
accumulated since the purchase of his Robb "35  ( Lady Anne) in 1965.  Have a look at the list and if there is anything here that you could use for your web site, just let me know and I'll make arrangements to get the information to you.
Bill Simmonds (son) of John Simmonds
Robb '35 "Lady Anne" Canada

There is some mystery surrounding the 41's produced by Cheoy Lee.  Click Here for more information on the mystery

Click Here for Owners Listing
