Offshore 33
Shoal Draft Sloop or Ketch

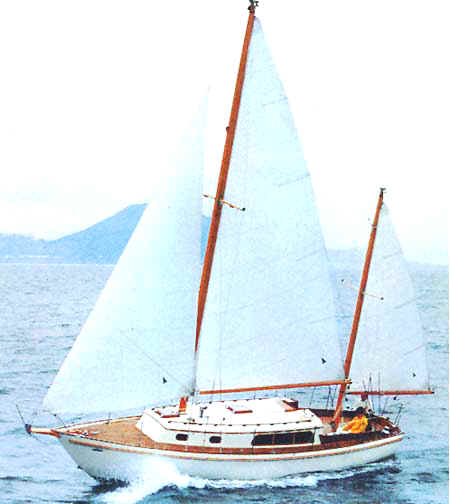

Pictures from original brochures
Submitted my Max Fagerstroem
Construction:

Fiberglass hull, deck and cabin trunk moulded to Lloyd's specifications 100A, hull thickness from 7/16" to 1", Engine: Palmer M60 or Atomic Four, Sitka Spruce Spars, Roller reefing main boom,   Burma Teak Trim, laid strip teak deck.

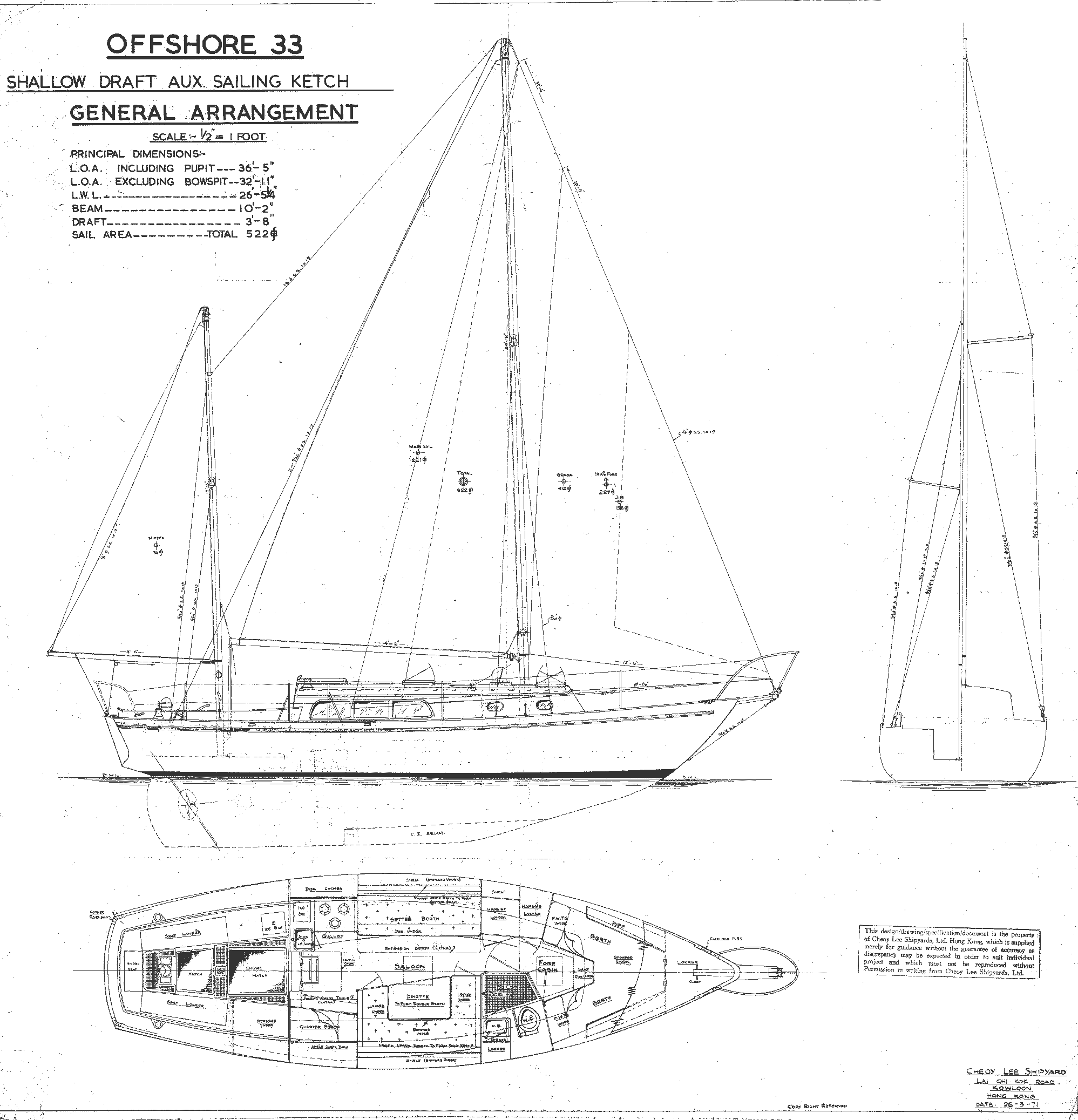

Click above image for large line drawing submitted by Hugh Elmore

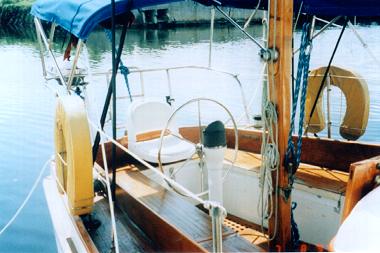

Thanks to Mauri and Sherrie Jarvinen who are selling "SAYONARA" for permission to use their photos and for sending me their survey to get some basic info on the Offshore 33

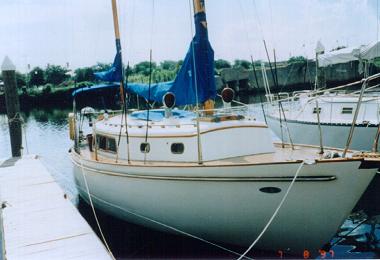

"SAYONARA" 1972 Offshore 33


Specs

LOA - 36' 5"w/pulpit
LWL - 26' 5.5"
Beam - 10' 2"
Draft - 3' 8"
Displacement - 10,482lbs
Ballast - 2500lbs Cast Iron
Sail Area - 522
Fuel -  20US Gal
Water -  35US Gal

Click for Line Drawing


Click to enlarge



Winn Rosch aboard "Folly" submitted an original ad that came with their Offshore 33
Click Here for Ad
