Offshore 47
by Bill Luders Jr. N.A.

Sloop/Ketch/or Yawl
Thanks to Ron Hendrixson for above scan

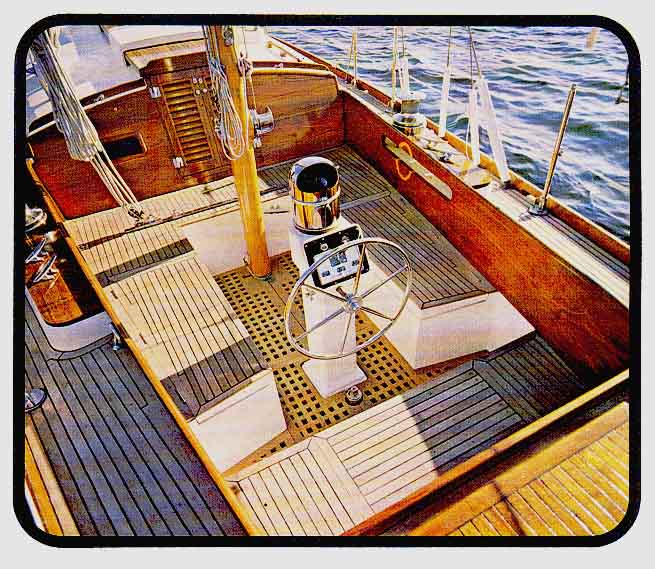

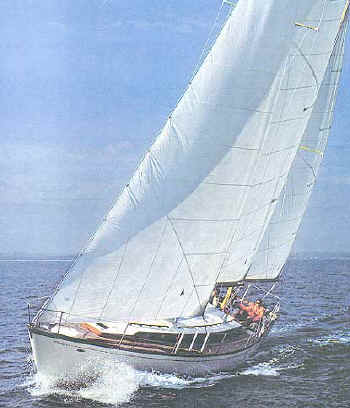

Pictures from original brochures
Construction:

Fiberglass hull, deck and cabin trunk moulded to Lloyd's specifications 100A1, Engines: Universal 70hp gas, Aluminum Spars (spruce optional), Roller Reefing main boom, Pedestal Wheel Steerer, Burma Teak Trim, laid strip teak deck.

Estimated 1972 IOR Ratings: Sloop 32.4, Yawl 32.5, Ketch 32

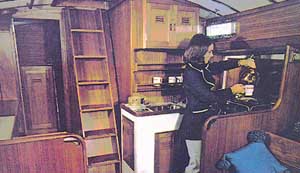

Offshore 47Interior1.jpg (18601 bytes)

Excerpts from the original brochure

"The OFFSHORE 47, designed by one of the world's foremost Architects, A.E. Bill Luders, Jr., further exemplifies the skillmanship and capabilities of one of the world's leading yacht by The Cheoy Lee Shipyards. The OFFSHORE 47 is designed to be a fast cruising yacht is available in ketch, sloop or yawl rig.  Its construction is the result of over 90 years of yacht-building knowledge and experience utilizing the best materials, and perfected for the most rigid standards and longevity. Much more than the average racing yacht, the OFFSHORE 47 is typical of all Cheoy Lee yachts, for it's designed for performance and built for stamina on the high seas.  Performance under sail approaches that of contemporary racing machines. The strength and durability of her solid fiberglass construction is beautifully concealed above deck and below by rich Burma Teak overlays, and is constructed precisely according to Lloyd's 100A1 Specifications, the worlds highest."


Specs

LOA - 46' 10"
LWL - 33'
Beam - 12' 1/2"
Draft - 6' 8"
Displacement -  26,500lbs
Ballast - 10,000lbs Cast Iron
Fuel -  20US Gal
Water -  35US Gal

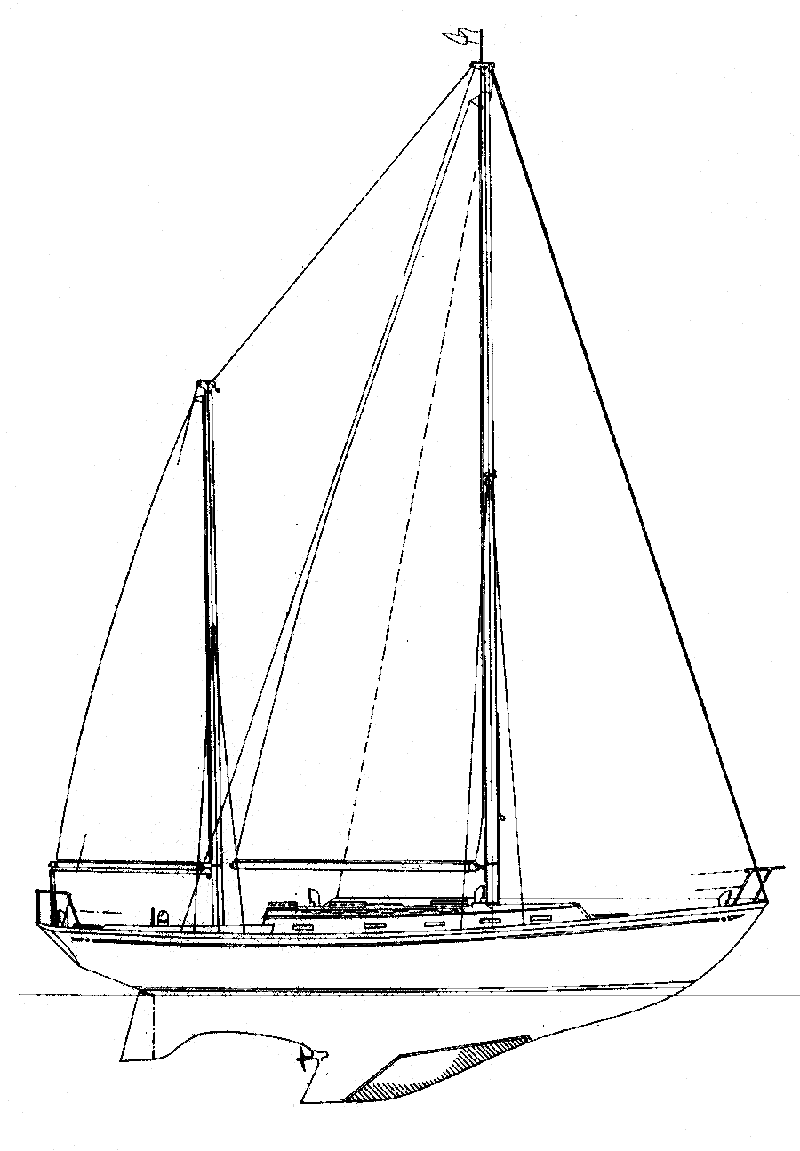

Click for Line Drawings, full drawing
submitted by Ron Hendrixson

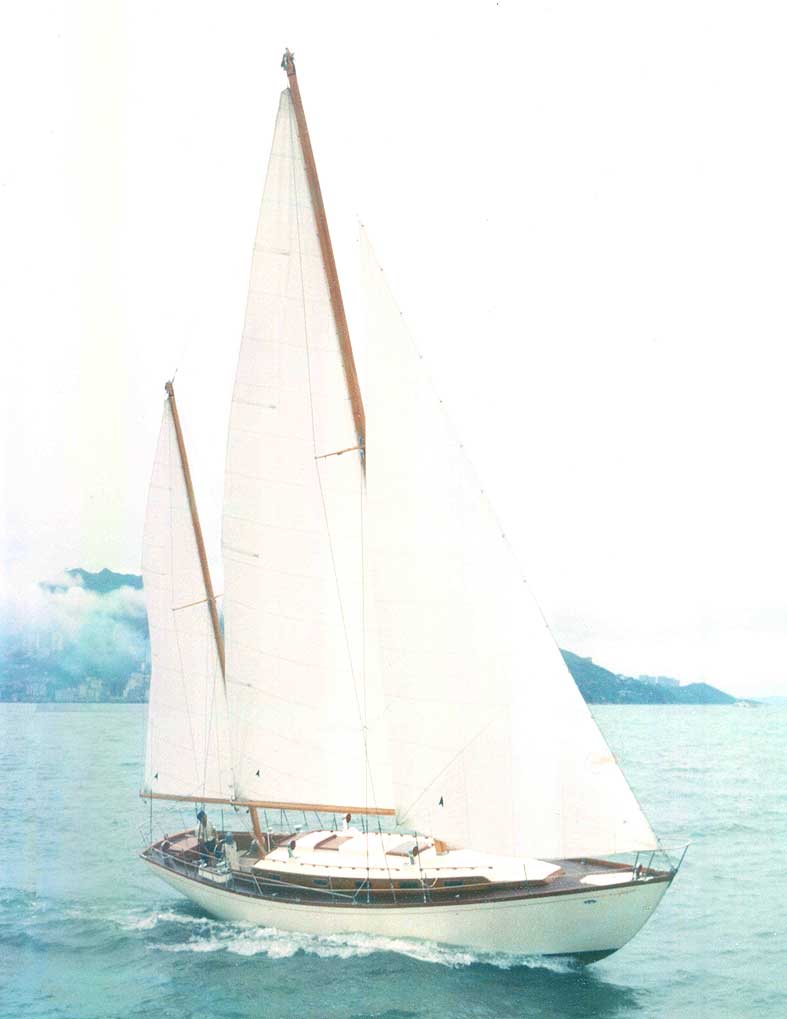

Click for full size photo

Offshore 47Interior2.jpg (23162 bytes)



















Listing of Offshore 47 Owners - Click Here
