All images can be clicked for full
image from brochure
|
|

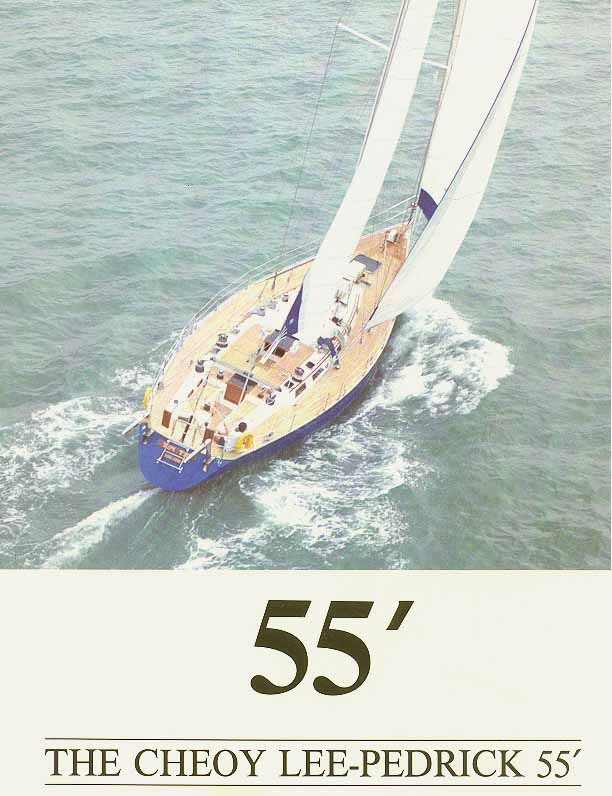

Specifications
LOA - 55'9"
LWL - 46'3"
Beam - 16'
Draft - 9'5"
Displacement - 48,000lb
Ballast (lead) - 20,000lb
Sail area - 1501 sq ft |
|
|
Pedrick
43 |
|

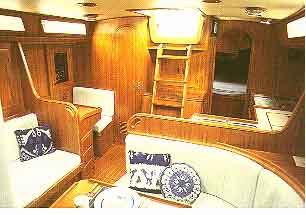

Specifications
LOA - 43'5"
LWL - 34'
Beam - 13'
Draft - 6'
Displacement - 23,000lb
Ballast (lead) - 9,000lb
Sail area - 937 sq ft |
Pedrick
38 |
|
|

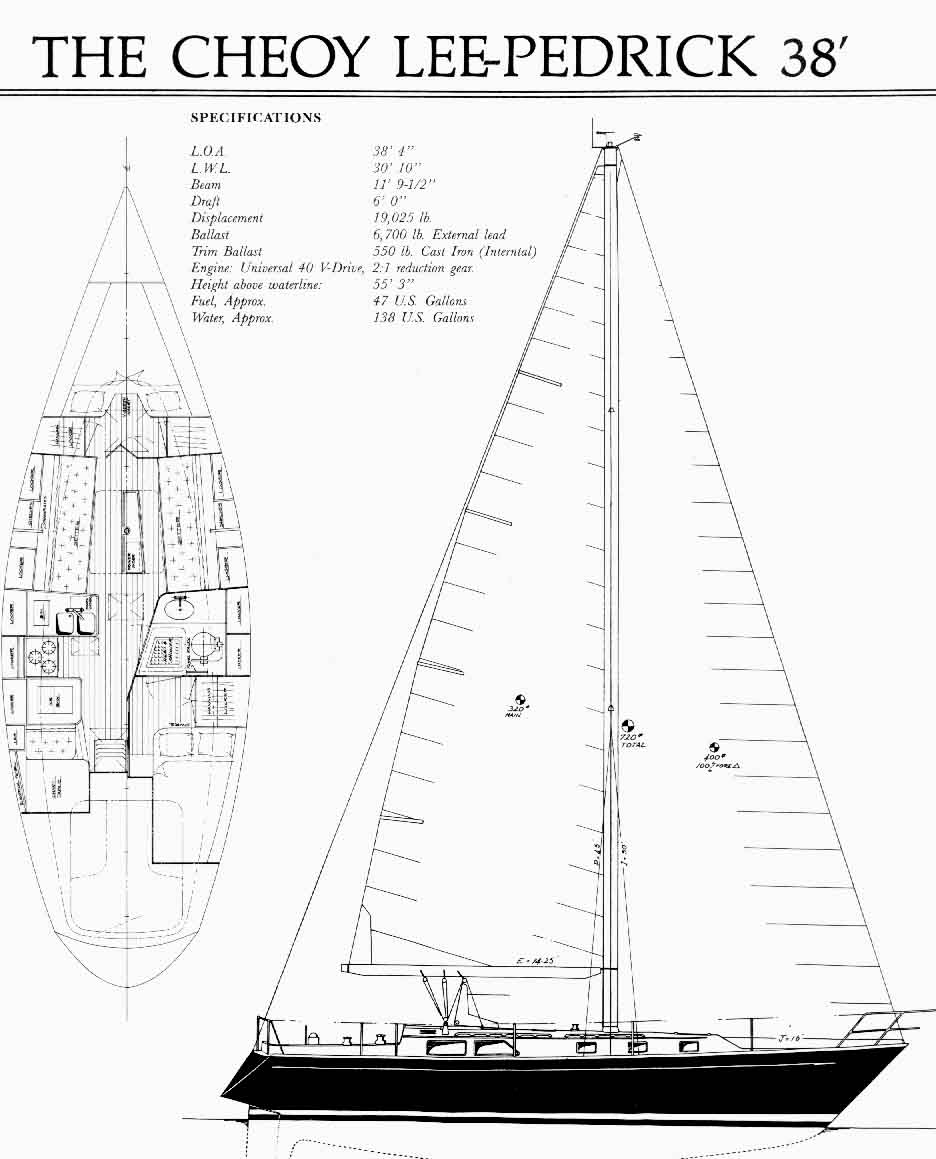

Specifications
LOA - 38'4"
LWL - 30'10"
Beam - 11'9.5"
Draft - 6'
Displacement - 19,025lb
Ballast (external lead) - 6,700lb
Sail area - 720 sq ft Sloop
|
|
|
|
|
|

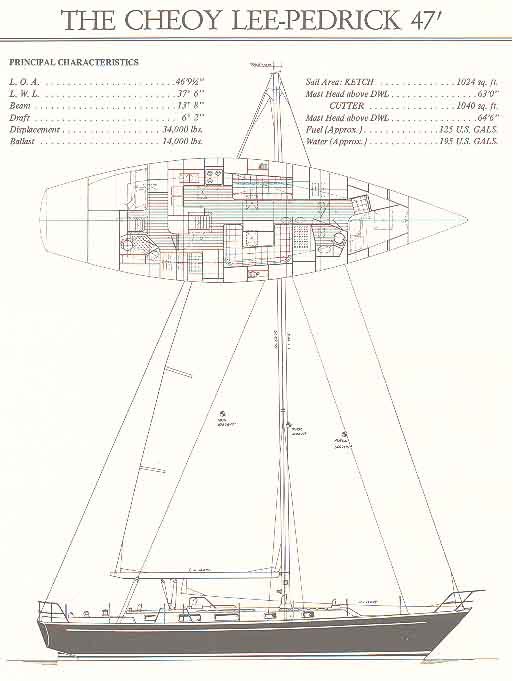

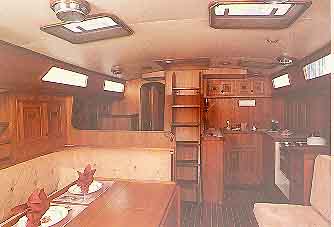

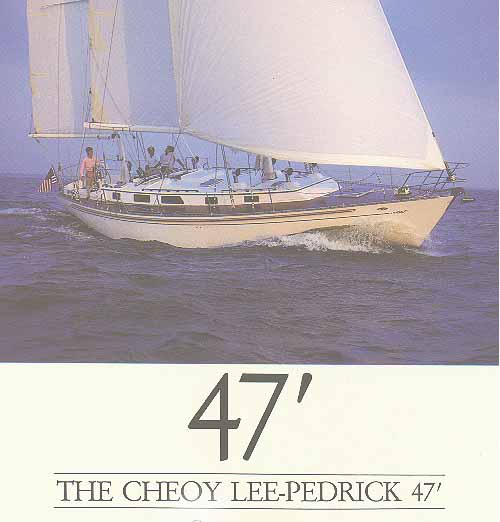

Specifications
LOA - 46'9.5"
LWL - 37'6"
Beam - 13'8"
Draft - 6'2"
Displacement - 34,000lb
Ballast (lead) - 14,000lb
Sail area - Sloop 1040sq' Ketch 1024sq'
|
|

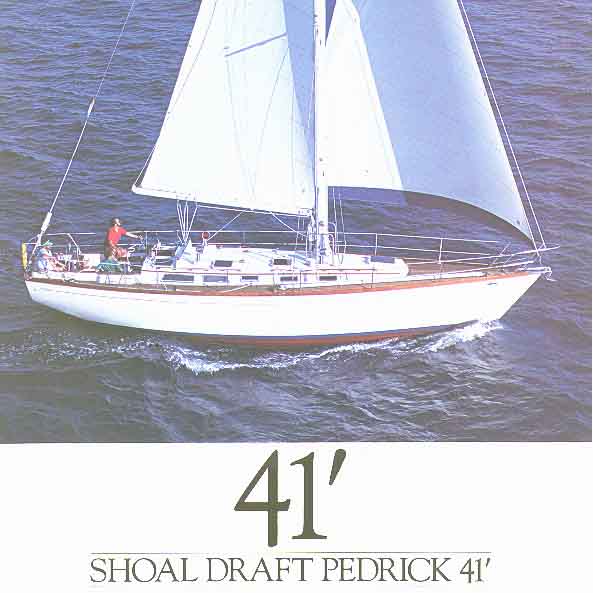

Pedrick
41 |
|
|

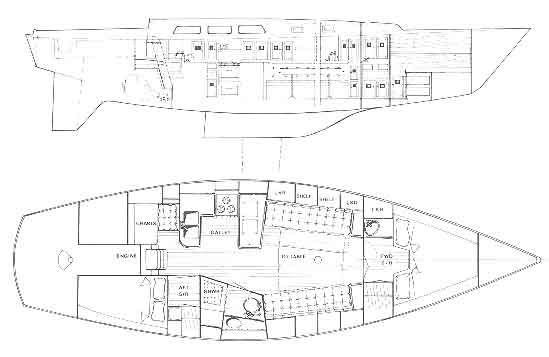

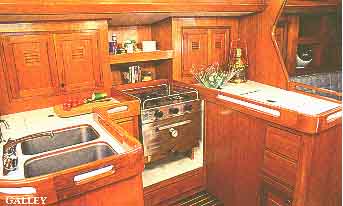

Specifications
LOA - 40'10"
LWL - 32'6"
Beam - 12'8"
Draft - 4'4"Board down 9'
Displacement -23,000lb
Ballast (lead) - 9,000lb
Sail area - 785 sq ft
|
Click Here for article on the Pedrick 41 by Jack Hornor
Reg
Aitken submitted 3 drawings, files are big but downloadable

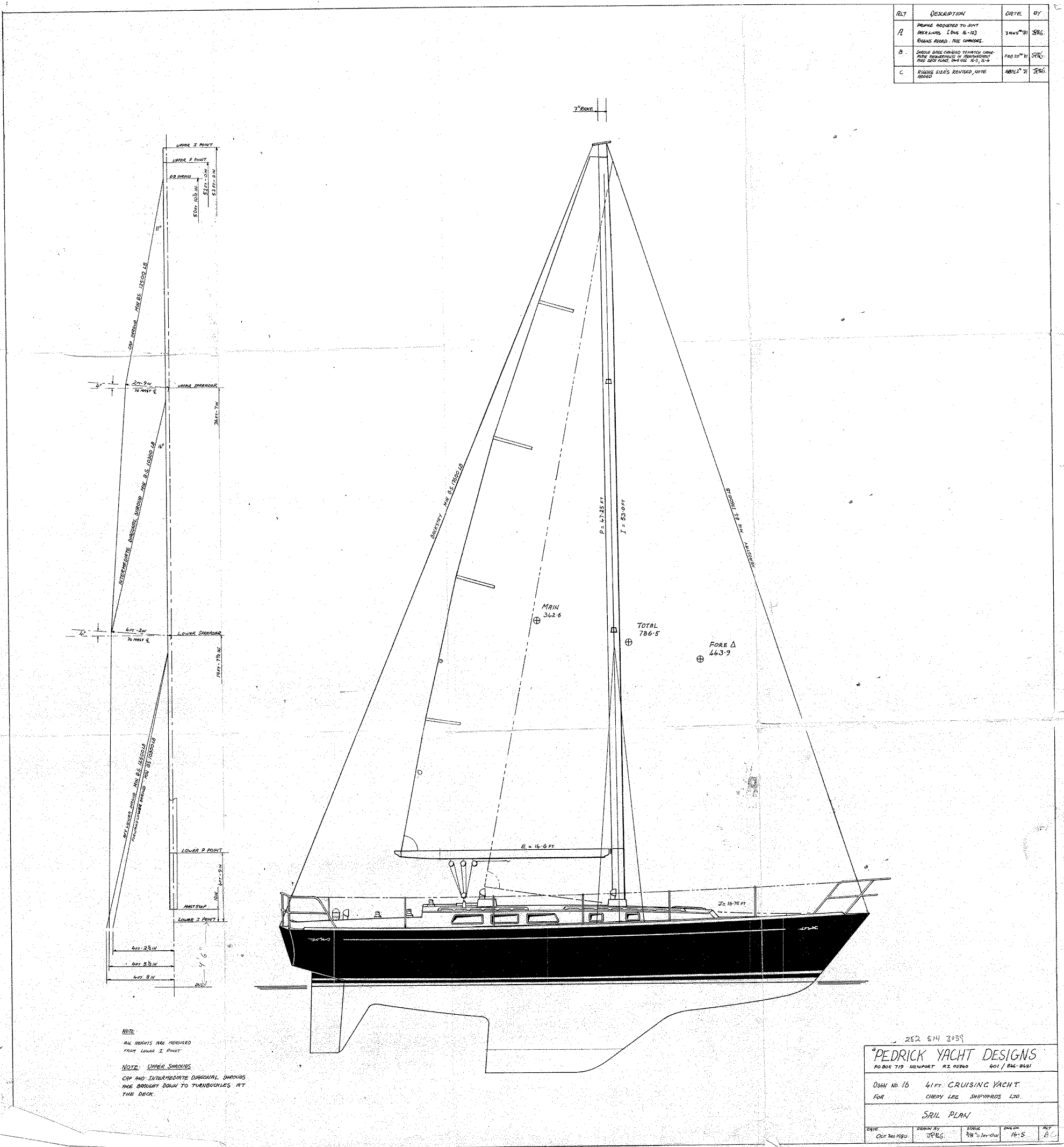

Profil _Sailplan

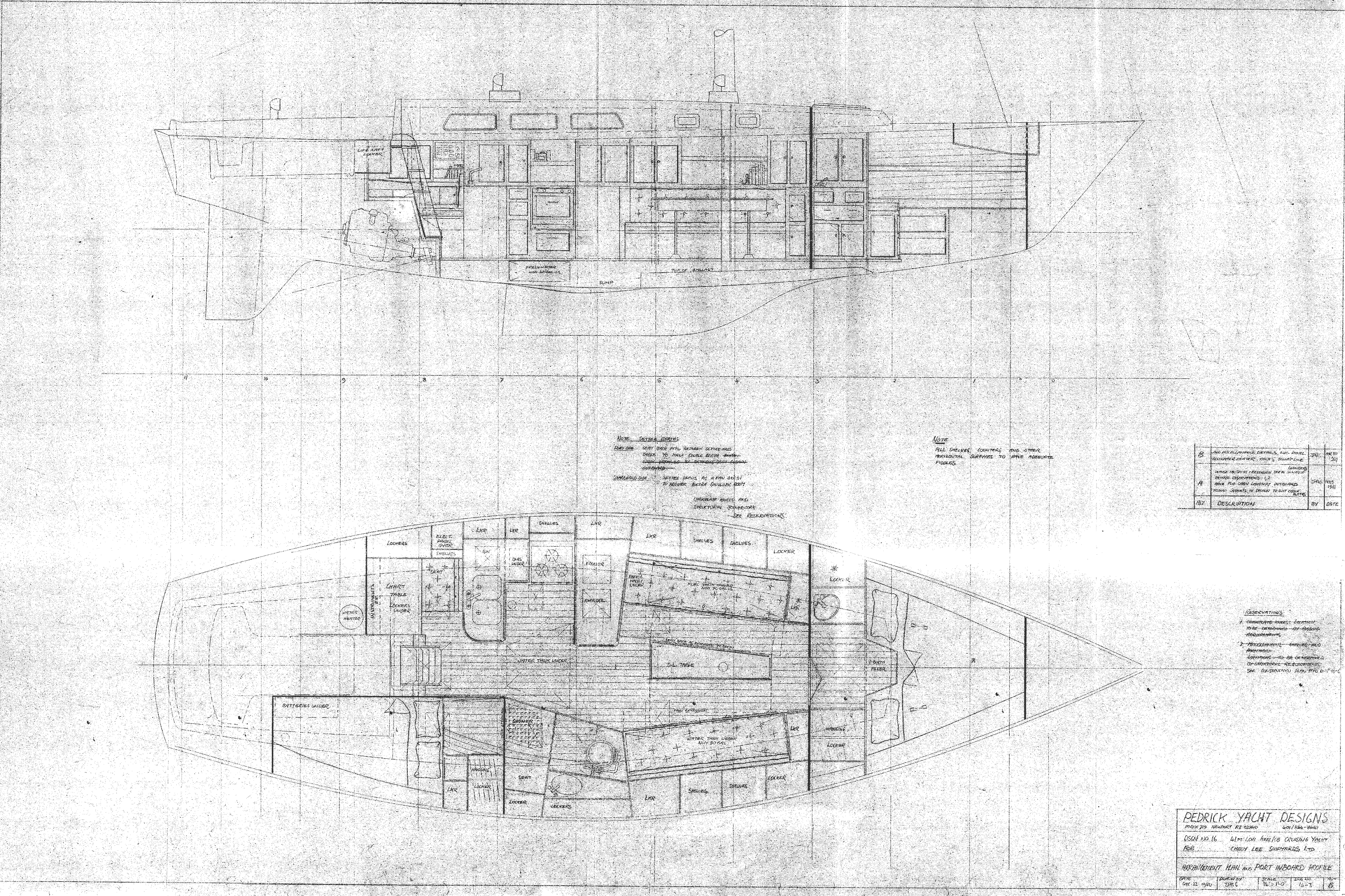

Cabin

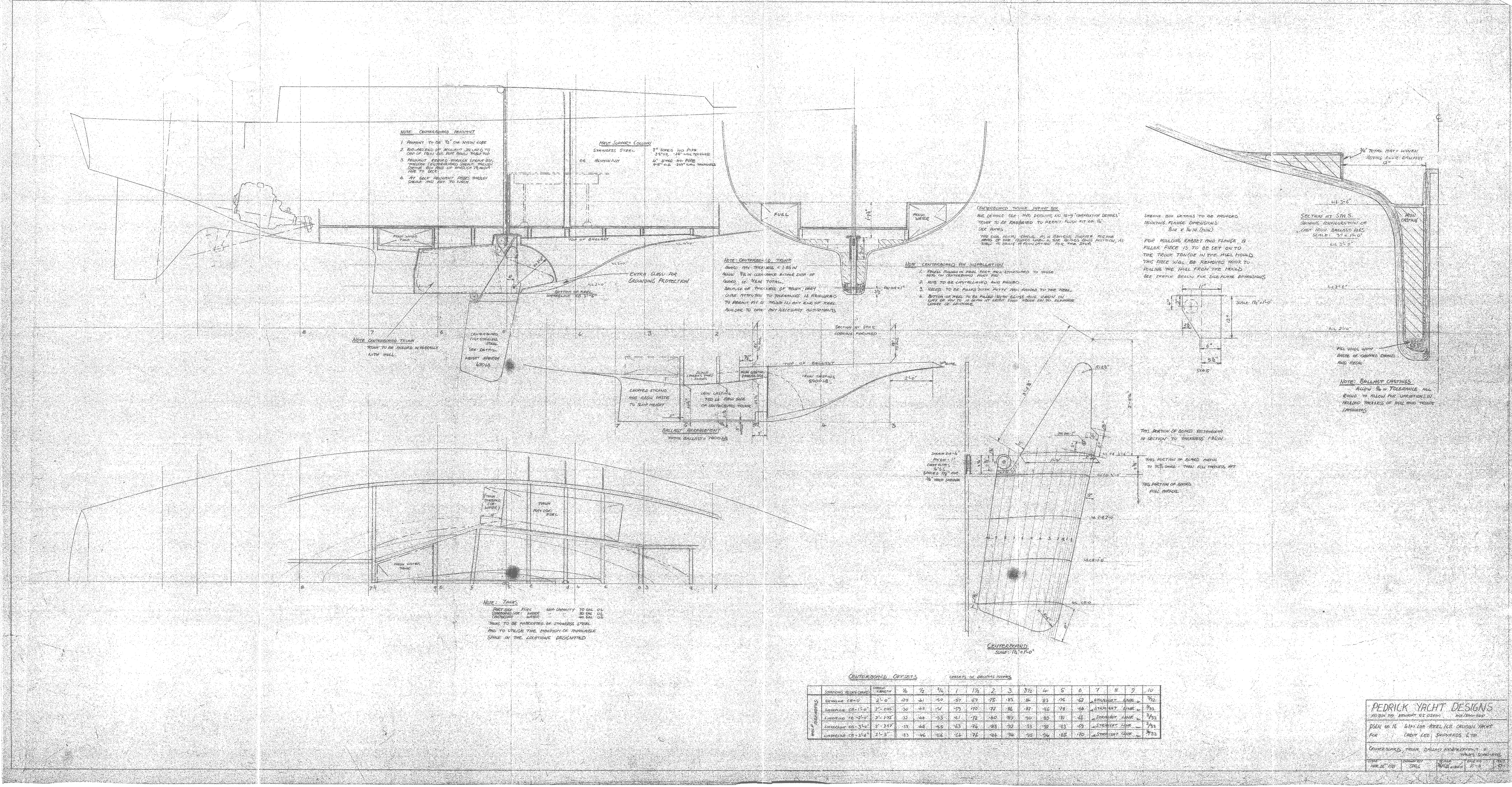

Keel Drawing |
|
Pedrick
36 |
|
|
Specifications
LOA - 35'10"
LWL - 28'10"
Beam - 11'5"
Draft - 5'8"
Displacement - 16,000lb
Ballast (lead) - 6350lb
Sail area - 613 sq ft
|
|
|
