| Pictures
& text from original brochure |
|
| Luders 36 -
Sloop or Yawl. Combine the best talents of one of today's outstanding Naval
Architects, A.E. Bill Luders and one of the world's leading builders, The Cheoy Lee
Shipyard of Hong Kong, and the result is an exceptional yacht. The new Luders 36 is
just such a yacht. Nothing has been spared in design or construction in the interest
of making her one of the finest yachts in her size range ever to appear on the market.
In the light of all the current fads in hull form, we asked Bill Luders to come up
with his concept of the ideal design for a racing/cruising 36 footer, based on his years
of experience in yacht design and construction, ranging from the well-known Luders 16
class through the Luders 27 (Storm) to the design and construction of the 12 meter
AMERICAN EAGLE. The LUDERS 36 is the result, and its pedigree is further enhanced by
the choice of the well-known Cheoy Lee Shipyard of Hong Kong as its builder. Cheoy
Lee is one of the best known and most diversified Shipbuilders in the world, and is the
largest builder of yachts outside the United States; over 2,000 Cheoy Lee Yachts in wood,
steel and fiberglass have been built in recent years. |
|
 |
Click to view
Jim Doyle submitted the following
PDF Version of brochure
PDF Sail Plan |
|
|
|
LOA - 35'6"
LWL - 25'
Beam - 10'3"
Draft - 5'3"
Sail Area
Main 304 sq'
Fore 292 sq'
Displacement - 15,000Lbs
Ballast - Lead, 5,250lb
Fuel - 40US Gal
Water - 80 US Gal
Available as Sloop, Ketch, or
Yawl
Years of Production ? Our
members boats range from 1968 to 78.
 |
|
|

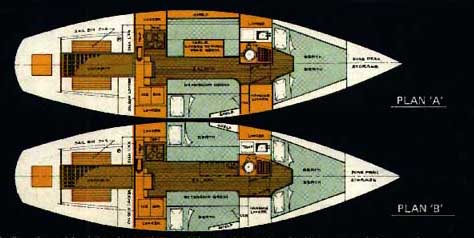

Interior layout very similar to the
Clipper 36
I am grateful to Ray Knudson
& Andy Laurence for
submitting brochures. james...
 |
|
